SPD Type 3 - EP Series

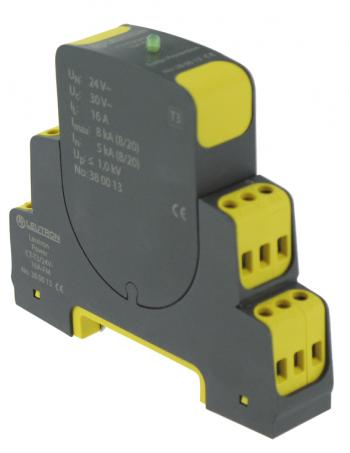

The SPD is applicable at the transition 2-3 according to the lightning protec-tion zones concept. Pluggable 2-pole surge arrester type 3 (class III) for TN systems with 16 or 25 Ampere ( 24 up to 275 Volt).

• Line function and equipment control by LED
• Leackage current free
• Remote signalling contact: break contact
• Mounting on 35 mm Hutschiene (EN 60715)
• Degree of protection according to IEC EN 60529: IP 20
• Space required for installation: 17.5 mm
• Test standard: IEC 61643-11 / EN 61643-11
• EAC certification
• Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
• Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6

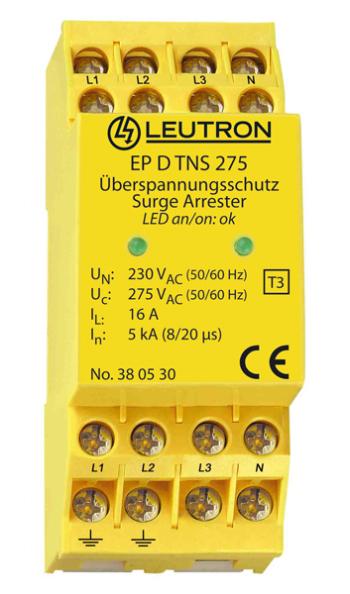

Three pole compact surge protective device e. g. for 1, 2 and 3 phase sys-trems (TNS-, TT-, TNC- and IT-systems). The SPD is applicable at the transiti-on 2-3 according to the lightning protection zones concept.

• Deepest protection against longitudinal and transverse voltages for loads up to 16 A
• Possible with parallel or spur wiring for 16 A
• Line function and equipment control by LED
• Inflammability class according to UL 94 V0
• Leackage current free
• Remote signalling contact (FM): break contact
• Mounting on 35 mm DIN rail (EN 60715)
• EAC certification
