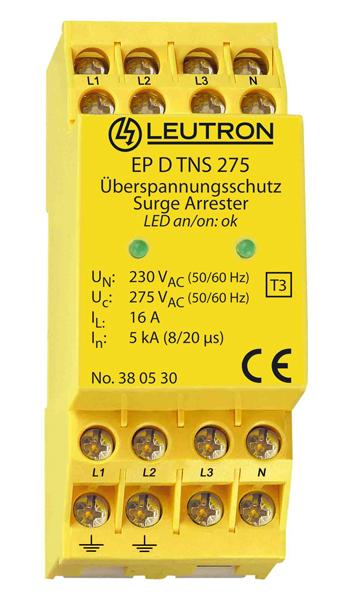

Three pole compact surge protective device e. g. for 1, 2 and 3 phase sys-trems (TNS-, TT-, TNC- and IT-systems). The SPD is applicable at the transiti-on 2-3 according to the lightning protection zones concept.

• Deepest protection against longitudinal and transverse voltages for loads up to 16 A
• Possible with parallel or spur wiring for 16 A
• Line function and equipment control by LED
• Inflammability class according to UL 94 V0
• Leackage current free
• Remote signalling contact (FM): break contact

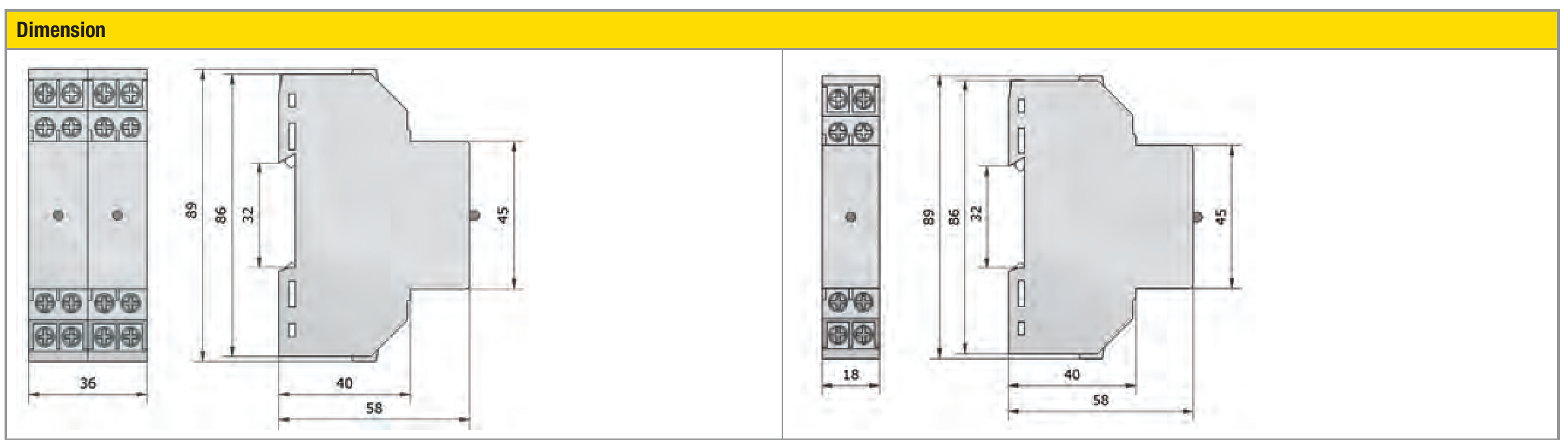

• Mounting on 35 mm DIN rail (EN 60715)
• EAC certification
