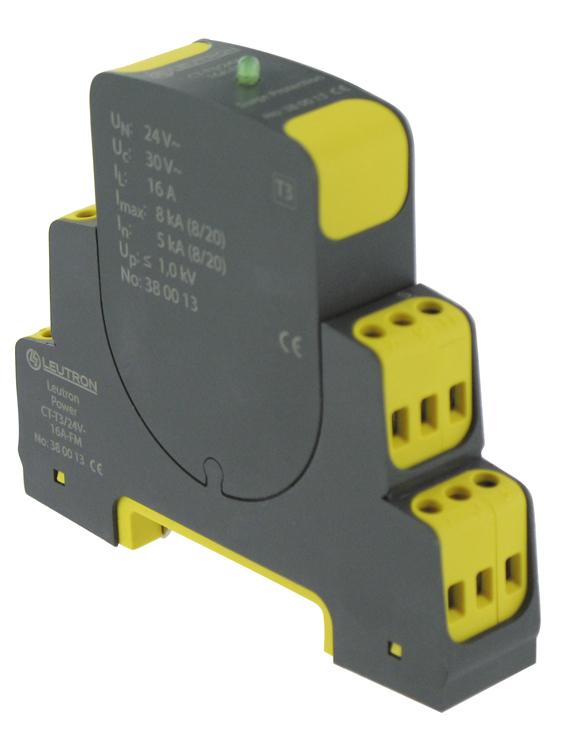

The SPD is applicable at the transition 2-3 according to the lightning protec-tion zones concept. Pluggable 2-pole surge arrester type 3 (class III) for TN systems with 16 or 25 Ampere ( 24 up to 275 Volt).

• Line function and equipment control by LED
• Leackage current free
• Remote signalling contact: break contact
• Mounting on 35 mm Hutschiene (EN 60715)
• Degree of protection according to IEC EN 60529: IP 20
• Space required for installation: 17.5 mm
• Test standard: IEC 61643-11 / EN 61643-11
• EAC certification
• Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
• Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
