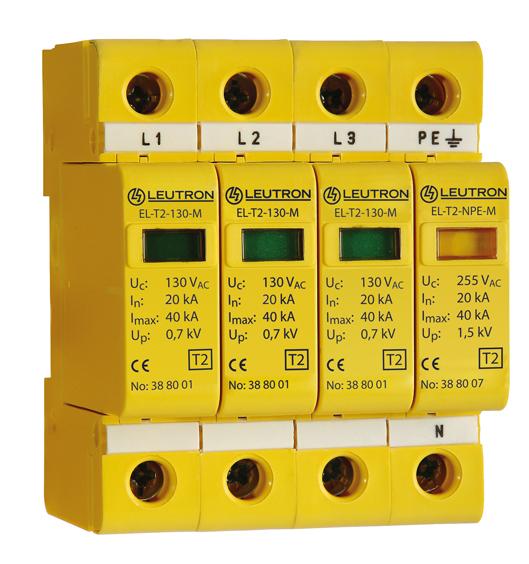

Fully pluggable surge protective arrester type 2 (class II)  for the use in 3 phase power supply systems. Prewired complete unit consisting of base part and modules. Variants available of 75 up to 750 Volt

• Test standard: IEC 61643-11 / EN 61643-11
• Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
• Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
• Mounting on 35 mm DIN rail (EN 60715)
• Inflammability class according to UL 97 V0
• EAC certification
• Remote signalling contact (FM): changeover contact
• operating voltage remote contact: 250 V AC/125 V DC
• operating current remote contact: 1 A AC/200 mA DC
• conductor cross section FM: 1,5 mm²
