SPD Type 2 - EL series

SPD Type 2 - EL series (2 Sản phẩm)

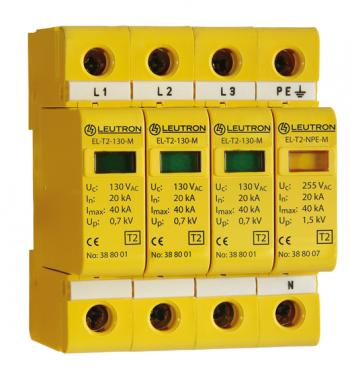

SPD type 2 for AC power supplies EL-T2 3 phase

SPD type 2 for AC power supplies EL-T2 3 phase

Fully pluggable surge protective arrester type 2 (class II)  for the use in 3 phase power supply systems. Prewired complete unit consisting of base part and modules. Variants available of 75 up to 750 Volt

  • Test standard: IEC 61643-11 / EN 61643-11
  • Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
  • Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
  • Mounting on 35 mm DIN rail (EN 60715)
  • Inflammability class according to UL 97 V0
  • EAC certification
  • Remote signalling contact (FM): changeover contact
  • operating voltage remote contact: 250 V AC/125 V DC
  • operating current remote contact: 1 A AC/200 mA DC
  • conductor cross section FM: 1,5 mm²

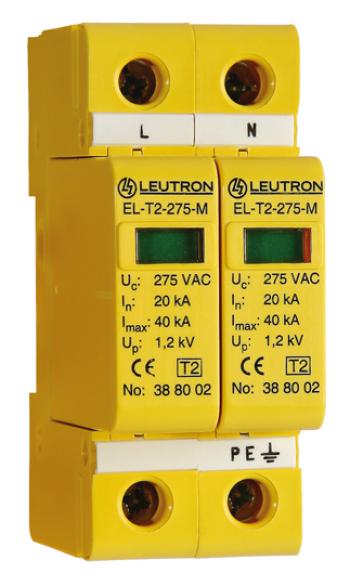

SPD type 2 for AC power supplies EL-T2 1 phase

SPD type 2 for AC power supplies EL-T2 1 phase

Fully pluggable surge protective arrester type 2 (class II)  for the use in 1 phase power supply systems. Prewired complete unit consisting of base part and modules. Variants available of 75 up to 750 Volt .

  • Test standard: IEC 61643-11 / EN 61643-11
  • Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
  • Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
  • Mounting on 35 mm DIN rail (EN 60715)
  • Inflammability class according to UL 97 V0
  • EAC certification
  • Remote signalling contact (FM): changeover contact
  • operating voltage remote contact: 250 V AC/125 V DC
  • operating current remote contact: 1 A AC/200 mA DC
  • conductor cross section FM: 1,5 mm²
