Multifunction Meter

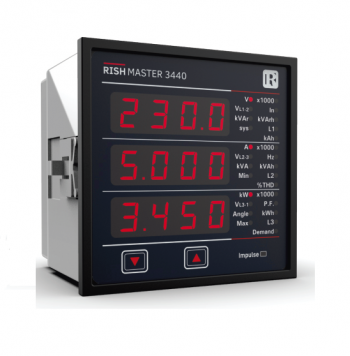

RISH Master 3440 is a class 0.2S as per IEC 62053.-22. It measures more then 46 important electrical parameters of 3phase/1phase system along with THD & individual harmonics upto 31st. It can communicate through ethernet /RS485 with external device, and it also have Pulse output and 4-20mA analog output.

• Input : 57 .7…346 VLN/ 100…600VLL (Programmable) - 45…65 Hz 1A or 5A (Programmable)
• Auxiliary: 60V ...300V AC/DC or 12...60V AC/DC
• Display :  4 Digit 3 Line for LED V ersion
• Accuracy : Class 0.2 & Class 0.2S (on request)
• V ersions : LED – Rish Master 3440
• Measures: V , A, Hz, KW, KV Ar, KV A, PF, Phase Angle, KWH, KV ArH, KV AH, Neutral Current, THD, Demand, Run Hour, ON Hour , No. of Interruptions
• Protection: IP54 from Front Side
• Output: RS485 Modbus + 2x Relay Output or RS485 Modbus + 1x Relay + 2x Analog Outputs or Ethernet Modbus (TCP /IP) - RJ45
• Size: 96 x 96 x 80 mm

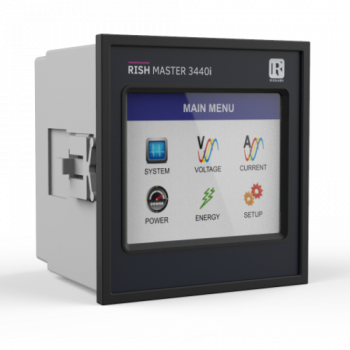

RISH Master 3440i is a class 0.2S as per IEC 62053-22. It measures more than 46 important electrical parameters in 3Ph3/4W & 1PH2W system along with THD & individual harmonics upto 31st. RISH Master 3440iDL has 8MB flash for datalogging

• Input : 57 .7…346 VLN/ 100…600VLL (Programmable) - 45…65 Hz 1A or 5A (Programmable)
• Auxiliary: 60V ...300V AC/DC or 12...60V AC/DC
• Display :  4 Digit 3 Line for LED V ersion
• Accuracy : Class 0.2 & Class 0.2S (on request)
• LCD – Rish Master 3440i / 3480 (T ouch Screen)
• Measures: V , A, Hz, KW, KV Ar, KV A, PF, Phase Angle, KWH, KV ArH, KV AH, Neutral Current, THD, Demand, Run Hour, ON Hour , No. of Interruptions
• Protection: IP54 from Front Side
• Output: RS485 Modbus + 2x Relay Output or RS485 Modbus + 1x Relay + 2x Analog Outputs or Ethernet Modbus (TCP /IP) - RJ45
• Size: 96 x 96 x 80 mm

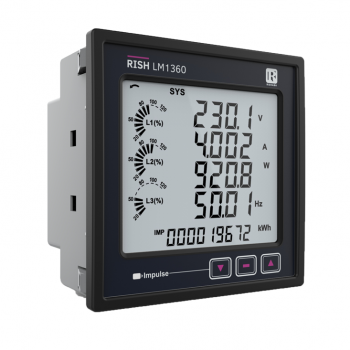

RISH LM1360 measures important electrical parameters in 3P4W,3P3W & 1P2W like Active / Reactive / Apparent energy, power and all basic parameter.The instrument has two optional outputs. It can be configured as pulse output for energy measurement, limit output , timer function and RTC relay.

• Input : 57 .7…346.42 V LN/ 100…600V LL (Programmable)-45…66 Hz ; 1A or 5A(Programmable) ; 100mA in case of Plug & play CT option
• Auxiliary: 100V ...550V AC/DC or 12-60V AC/DC
• Accuracy: Class 0.2S; Class 1 (for Plug and play CT option)
• Display : 4 Line 4 Digit LCD display +9 digit separate energy counter + Load analog graph
• Measures: LM 1360 – V , A, Hz, KW, KV Ar, KV A, PF, Phase Angle, KWh, KV Arh, KV Ah, Neutral Current, Harmonics (31st), THD, Demand, Run Hour , ON Hour , No. Of Interruptions, old parameters
• Output : RS485 Modbus + 2 x Pulse Output or Ethernet, (Modbus T CP /IP) or Ethernet (Modbus T CP /IP) + Data logging + RTC RS485 Modbus + 2x Pulse ; Output + Data logging + USB + RTC or GSM Data Logger (All plug and play modules)
• Protection : IP50 from Front Side
• Size (H x W x D) : 96 x 96 x 70 mm
