RISH LM1350 / LM1360 measures important electrical parameters in 3 phase 4 wire,3 phase 3 wire and1 phase 2 wire Network. Rish LM1350/60 displays many parameters at a glance. It measures electrical parameters like Active / Reactive / Apparent energy , power and all basic parameter.The instrument has two optional outputs.It can be configured as pulse output for energy measurement , limit output , timer function and RTC relay.
RISH LM1360/ LM 1350 Series

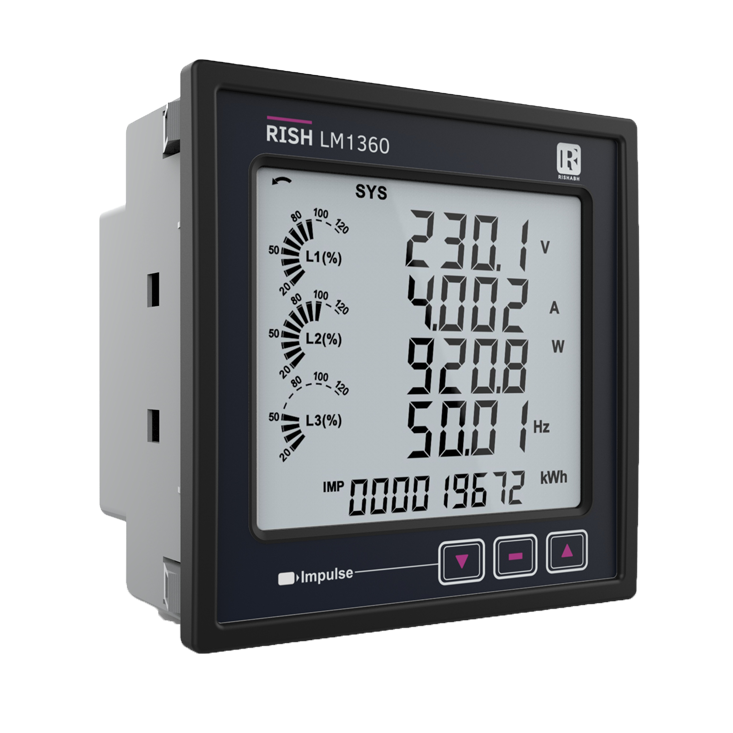

- RISH LM1360
- Rishabh
RISH LM1360 measures important electrical parameters in 3P4W,3P3W & 1P2W like Active / Reactive / Apparent energy, power and all basic parameter.The instrument has two optional outputs. It can be configured as pulse output for energy measurement, limit output , timer function and RTC relay.
- Input : 57 .7…346.42 V LN/ 100…600V LL (Programmable)-45…66 Hz ; 1A or 5A(Programmable) ; 100mA in case of Plug & play CT option
- Auxiliary: 100V ...550V AC/DC or 12-60V AC/DC
- Accuracy: Class 0.2S; Class 1 (for Plug and play CT option)
- Display : 4 Line 4 Digit LCD display +9 digit separate energy counter + Load analog graph
- Measures: LM 1360 – V , A, Hz, KW, KV Ar, KV A, PF, Phase Angle, KWh, KV Arh, KV Ah, Neutral Current, Harmonics (31st), THD, Demand, Run Hour , ON Hour , No. Of Interruptions, old parameters
- Output : RS485 Modbus + 2 x Pulse Output or Ethernet, (Modbus T CP /IP) or Ethernet (Modbus T CP /IP) + Data logging + RTC RS485 Modbus + 2x Pulse ; Output + Data logging + USB + RTC or GSM Data Logger (All plug and play modules)
- Protection : IP50 from Front Side
- Size (H x W x D) : 96 x 96 x 70 mm
