Chống sét đường thông tin (Signal SPD)

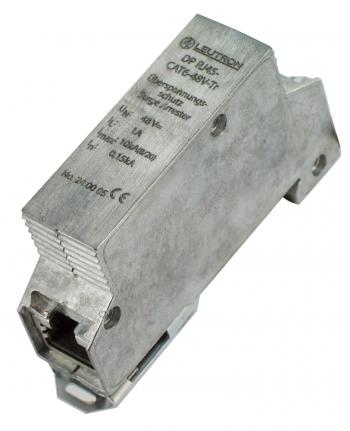

Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provi-des an easy application in cable ducts or directly at the terminal equipment.

• Suitable for Cat. 6 / class E applications (up to Gbit Ethernet)
• Applicable at the boundaries LPZ 0B - 2 and higher
• Test standards: IEC 61643-21 / EN 61643-21
• All 8 signal lines (4 pair of wires) are protected simultaneously
• RJ45 SPD for PoE (Power over Ethernet)
• Mounting on 35 mm DIN rail (EN 60715)
• EAC certification

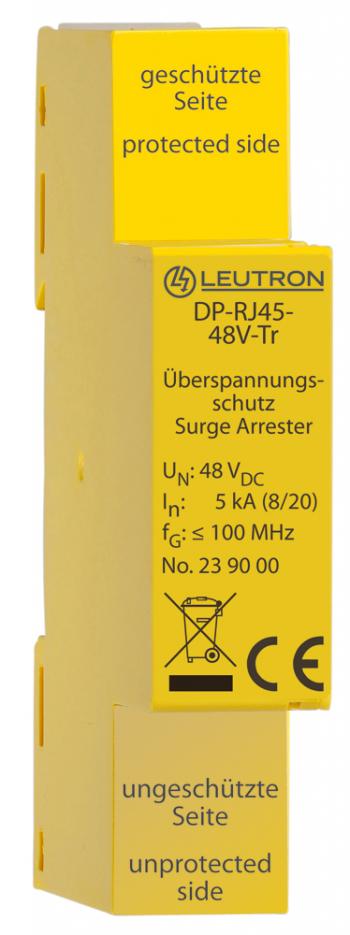

Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provi-des an easy application in cable ducts or directly at the terminal equipment.

• Suitable for Cat. 5
• Compatible to 10Base T / 100Base T
• Applicable at the boundaries LPZ 1 - 2 and higher
• Test standards: IEC 61643-21 / EN 61643-21
• Mounting on 35 mm DIN rail (EN 60715)
• RJ45 SPD for PoE (Power over Ethernet)
• All 8 signal lines (4 pair of wires) are protected simultaneously.
• EAC certification

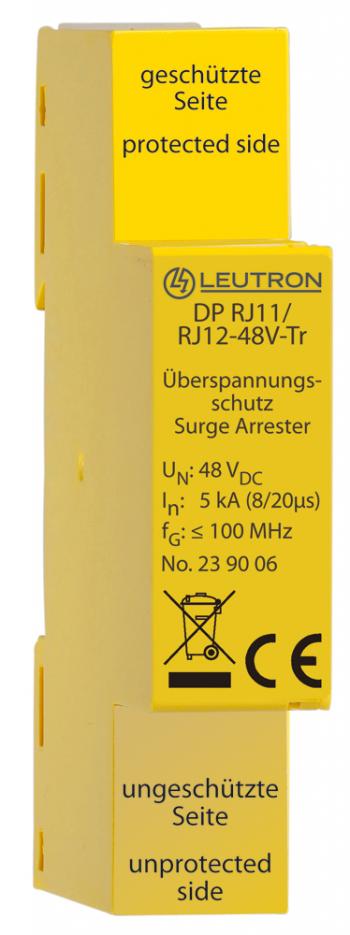

Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provi-des an easy application in cable ducts or directly at the terminal equipment.

• Suitable for Cat. 5
• Compatible to 10Base T / 100Base T
• Applicable at the boundaries LPZ 1 - 2 and higher
• Test standards: IEC 61643-21 / EN 61643-21
• RJ11/RJ12 SPD for DIN rail mounting
• RJ11/RJ12 SPD for PoE (Power over Ethernet)
• All 6 signal lines (3 pair of wires) are protected simultaneously
• EAC certification

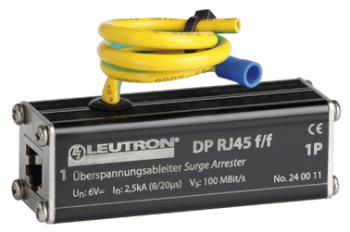

Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provi-des an easy application in cable ducts or directly at the terminal equipment.

• Suitable for Cat. 5 / Class D
• Applicable at the boundaries LPZ 0B - 2 and higher.
• Test standards: IEC 61643-21 / EN 61643-21
• Compatible to 10Base T / 100Base T
• All 8 signal lines (4 pair of wires) are protected simultaneously.
• EAC certification
