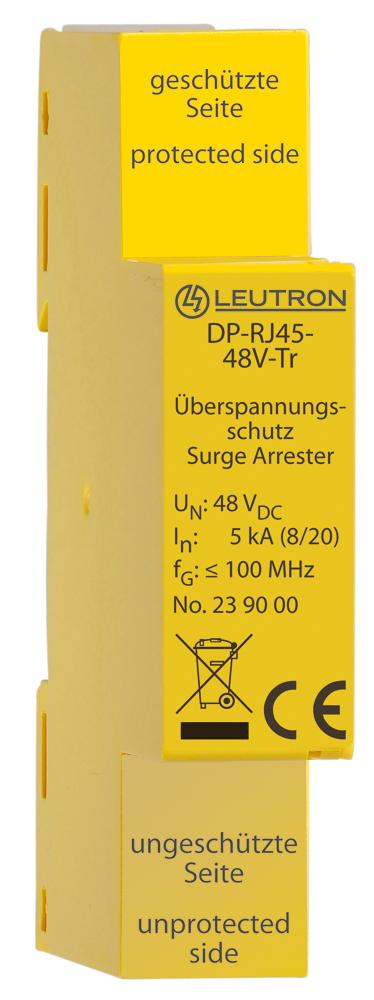

Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provi-des an easy application in cable ducts or directly at the terminal equipment.

• Suitable for Cat. 5
• Compatible to 10Base T / 100Base T
• Applicable at the boundaries LPZ 1 - 2 and higher
• Test standards: IEC 61643-21 / EN 61643-21
• Mounting on 35 mm DIN rail (EN 60715)
• RJ45 SPD for PoE (Power over Ethernet)
• All 8 signal lines (4 pair of wires) are protected simultaneously.
• EAC certification
