Industrial Ethernet Switch

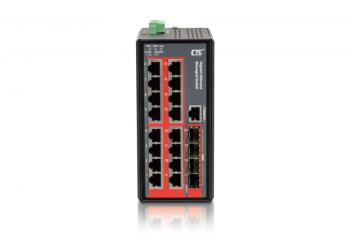

These models are managed industrial grade GbE L2+ switches with 16/8 10/100/1000Base-T ports and 4/12 GbE/100M Ethernet SFP ports that provide stable and reliable Ethernet transmission.

• Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
  (Please see CTC μ-Ring white paper for more details and more topology application)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration*
• Supports SmartView for Centralized Management*

These models are managed industrial grade GbE L2+ switches with 8/4 10/100/1000Base-T ports plus 3/4 GbE/100M Ethernet SFP ports that provide stable and reliable Ethernet transmission.

• Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
• 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
• 4KV surge protection for UTP and fiber ports
• Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
  (Please see CTC μ-Ring white paper for more details and more topology application)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration Tool*
• Supports SmartView for Centralized Management*

FS⁺ 803GSM is a managed industrial grade L2+ switch with 8 10/100Base-TX ports and 3 GbE/100M SFP ports that provides stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures.

• Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
• 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
• 4KV surge protection for UTP and fiber ports
• Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
  (Please see CTC μ-Ring white paper for more details and more topology application)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration Tool*
• Supports SmartView for Centralized Management*

These models are managed industrial grade L2+ switches with 16/8/4 10/100Base-TX ports and 4/3/2 GbE/100M SFP ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments.

• Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.Supports up to 5 rings in one device
  (Please see CTC u-Ring white paper for more details and more topology application)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration*
• Supports SmartView for Centralized Management*
