IFS⁺ 803GSM

  • IFS 803GSM
  • CTC Union

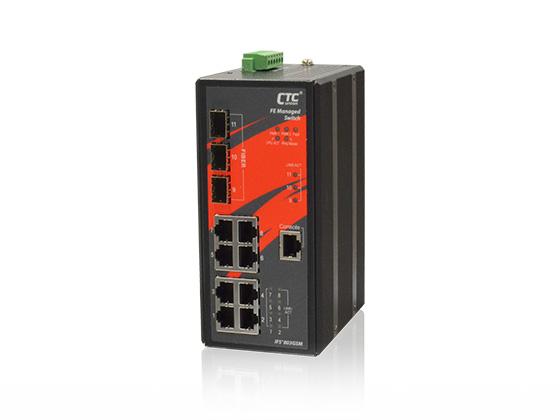

FS⁺ 803GSM is a managed industrial grade L2+ switch with 8 10/100Base-TX ports and 3 GbE/100M SFP ports that provides stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures.

  • Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
  • 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
  • 4KV surge protection for UTP and fiber ports
  • Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
    (Please see CTC μ-Ring white paper for more details and more topology application)
  • μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration Tool*
  • Supports SmartView for Centralized Management*

IFS⁺ 803GSM is a managed industrial grade L2+ switch with 8 10/100Base-TX ports and 3 GbE/100M SFP ports that provides stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, the switch is designed for harsh environments, such as industrial networks, security automation applications, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications (See Figure). Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.
