10G Core Switch

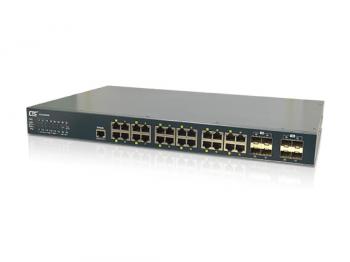

ICS-G4804X & ICS-G24044X are industrial grade, hardened design, managed L2+ switches, built for the rigorous demands of centralized and critical applications.

• Redundant isolated 24/48VDC, or/and isolated 110/220VAC power inputs
• Supports negative voltage power input
• 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
• Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
• μ-Ring redundancy, recovery time <20ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration*
• Supports SmartView for Centralized Management*

ICS-G24S4X & ICS-G24S2X are industrial grade, hardened design, managed L2+ switches, equipped with 20 GbE SFP ports plus 4 combo GbE ports and 2 or 4 10GbE SFP+ uplink ports.

• Redundancy isolated low voltage 24/48VDC, or/and isolated High voltage (110/220VAC) power inputs
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
• Provides 14 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 14 rings in one device
  (Please see CTC Union μ-Ring white paper for more details and more topology application)
• μ-Ring for Redundant Cabling, recovery time<50ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration*
• Supports SmartView for Centralized Management*

ICS-G24044X-24PH is a hardened L2 managed core switch which also supports PoE+/PSE for rigorous demands of centralize and critical applications.

• Maximum up to 24x IEEE 802.3af / 802.3at PoE+ output, 30W per port, 400W PoE power budget in total
• Redundant dual input power 48VDC (44~57VDC)
• Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
• μ-Ring redundancy, recovery time <20ms in 250 devices
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Provides SmartConfig for quick and easy mass Configuration*
• Supports SmartView for Centralized Management*
