ICS-G24S4X, ICS-G24S2X

  • ICS-G24S4X
  • CTC Union

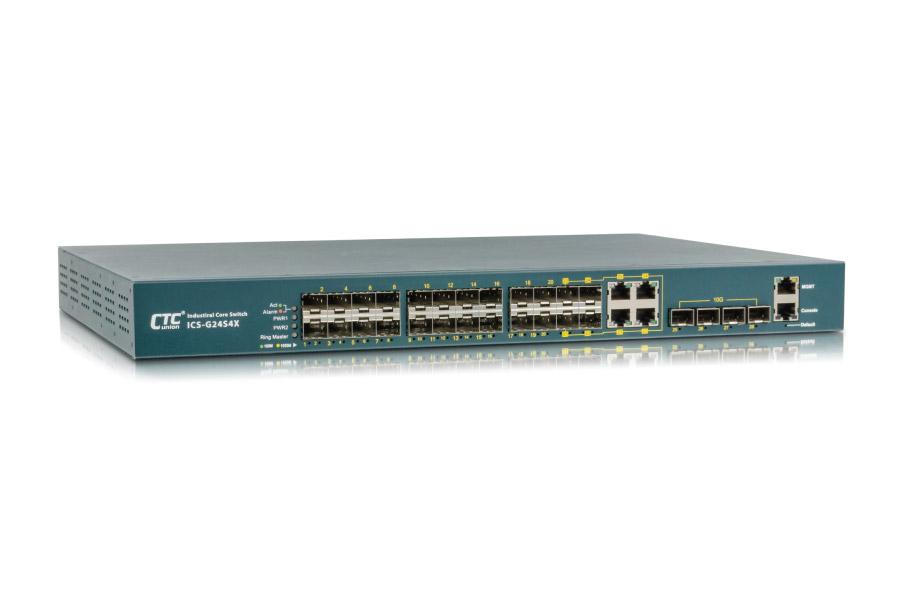

ICS-G24S4X & ICS-G24S2X are industrial grade, hardened design, managed L2+ switches, equipped with 20 GbE SFP ports plus 4 combo GbE ports and 2 or 4 10GbE SFP+ uplink ports.

  • Redundancy isolated low voltage 24/48VDC, or/and isolated High voltage (110/220VAC) power inputs
  • STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
  • Provides 14 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 14 rings in one device
    (Please see CTC Union μ-Ring white paper for more details and more topology application)
  • μ-Ring for Redundant Cabling, recovery time<50ms in 250 devices
  • Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • Provides SmartConfig for quick and easy mass Configuration*
  • Supports SmartView for Centralized Management*

ICS-G24S4X & ICS-G24S2X are industrial grade, hardened design, managed L2+ switches, equipped with 20 GbE SFP ports plus 4 combo GbE ports and 2 or 4 10GbE SFP+ uplink ports. ICS series models are all fan-less designs with redundant, isolated power supplies (2 AC, 2 DC, AC + DC) and can be mounted in 19-inch EIA standard rack. ICS Series are certified with many industrial-grade standards and are ideal for deployments in harsh environments to deliver mission-critical network services. Additionally, with high port density and GbE or 10 GbE high-speed uplink, ICS-G24S4X & ICS-G24S2X are a reliable and scalable solution for core layer or backbone applications (See figure 1 & 2).
