Programmable input temperature sensors:
RTD : PT100(2 or 3 wire), Pt1000.
Thermocouple: J,T ,K,S,R,B,N,E.
Analog Input(0/4-20mA,0-5/10V).
Configuration through:
Front keys.
Measurement are available on:

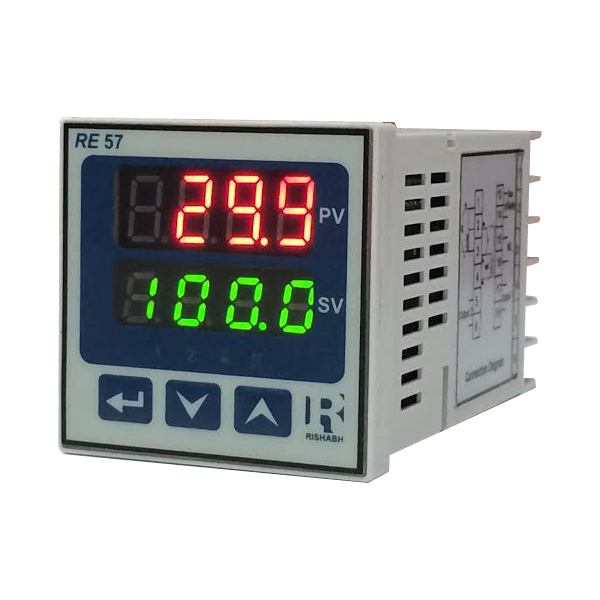

Dual 4 digit 7 segment display for PV & SP .
Control Output:
Control Method : ON-OFF ,PID .
Type of control output : Relay or SSR
Alarm Output:
Different Alarm modes available.
Type of alarm output : Relay or SSR.
Auto Tunning Function
Auto tunning of PID Parameters.
Manual mode
Output can be controlled manually.
Output on Failure
User can set the value for safe operation of process on failure of input sensor
Input Digital filter
The time constant of the filter can be set from 0 to 999.9sec.
Heating / Cooling control
Output can be configured as Heating or Cooling control.
Timer Function
Output can be configured for timer function.
Timer output can be assigned to following functions
- Stop Control Output
- Switch to Manual Mode
- Start Auto Tunning
- Stop Auto tunning
Enclosure Protection for dust and water:
Conforms to IP54 for front face and IP20 for terminal side as per IEC 60529.
Compliance to International Safety standards
Compliance to International Safety standard IEC 61010-1- 2010.
EMC Compatibility
Compliance to International standard IEC 61326.
