STM1/E1 Managed Multiplexer

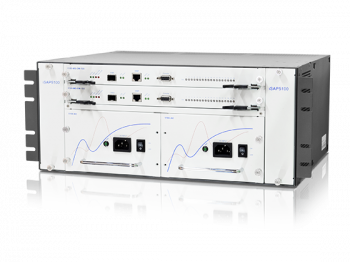

The iSAP5100 is a 4U 19” 20 slots rack type STM1 / E1 Time Division Multiplexer for fractional E1 network access, which is designed for non-stop operation.

• Supports MAX. 96xE1 with full cross-connect, Supports DS0 cross-connect
• Supports 16 channel Main E1 LTU card
• Supports E1 time slot broadcast function
• Modular design for Voice I/O card, the voice I/O card has two sub-module, each sub-module supports 4-port FXO/FXS
• All modules and cards support hot-swapping
• DCE card types included N x 64K, RS232(Sync/Async), G703-64K, ET100, E&M, FXO, FXS...etc.
• Supports Console, Telnet, SNMP and GUI management
• Available types of power built-in : AC+AC, AC+DC, DC+DC
• Modular design, 5U 19”, 18-slot for I/O cards

The iSAP2000 is a 2U 19” 6 slots rack type E1 Time Division Multiplexer for fractional E1 network across, which is designed for nonstop operation.

• Supports MAX. 96xE1 with full cross-connect, Supports DS0 cross-connect
• Supports 16 channel Main E1 LTU card
• Supports E1 time slot broadcast function
• Modular design for Voice I/O card, the voice I/O card has two sub-module, each sub-module supports 4-port FXO/FXS
• All modules and cards support hot-swapping
• DCE card types included N*64K, RS232(Sync/Async), G703-64K,
• ET100, ET100R, E&M, FXO, FXS, FOM01, FOM02...etc.
• Supports Console, Telnet, SNMP and GUI management
• Available types of power built-in : AC+AC, AC+DC, DC+DC
• Modular design, 2U 19”, 6-slot for I/O cards
