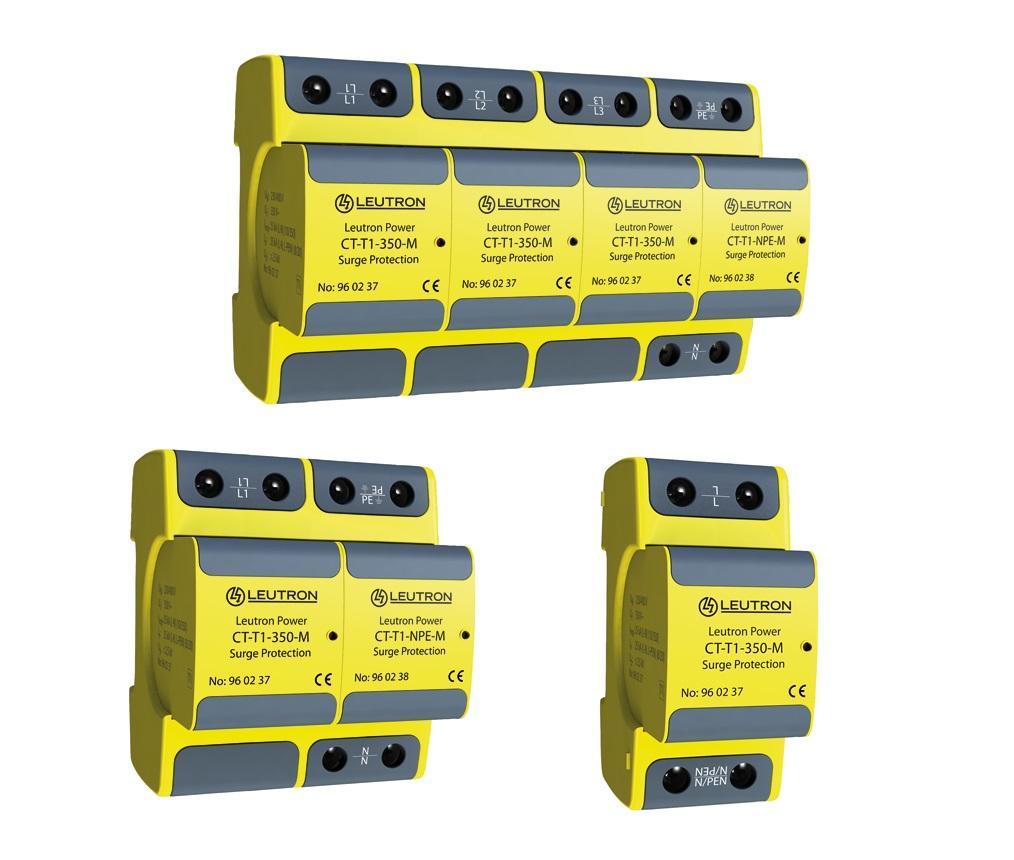

Chống sét lan truyền Loại 1, CT-T1

Chống sét lan truyền Loại 1, CT-T1

  • CT-T1
  • LEUTRON

Multipole pluggable lightning current arrester for the use in TNS, TT and TNC systems, with rare-gas-filled spark gap. They provide extremely high dischar-ge cappabilities with at the same time very low protection levels and they also do not need any damageable internal or external electronic trigger.

  • Applicable at the boundaries LPZ 0A - 1
  • Test standard: IEC 61643-11 / EN 61643-11
  • Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
  • Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
  • Mounting on 35 mm DIN rail (EN 60715)
  • Enclosure material: thermoplastic with the colors yellow and black
  • Degree of protection according to IEC EN 60529: IP 20
  • Inflammability class according to UL 94 V0
  • EAC certification
  • No leakage currents, thus, allowing installation upstream of power meters
  • Optical sattus indication (red pin appears)
  • Single modules can be replaced easily
  • Remote changeover contact
  • operating voltage remote contact: 250 V AC/125 V DC
  • operating current remote contact: 1 A AC/200 mA DC
  • locking torque FM terminals: 0,25 Nm
