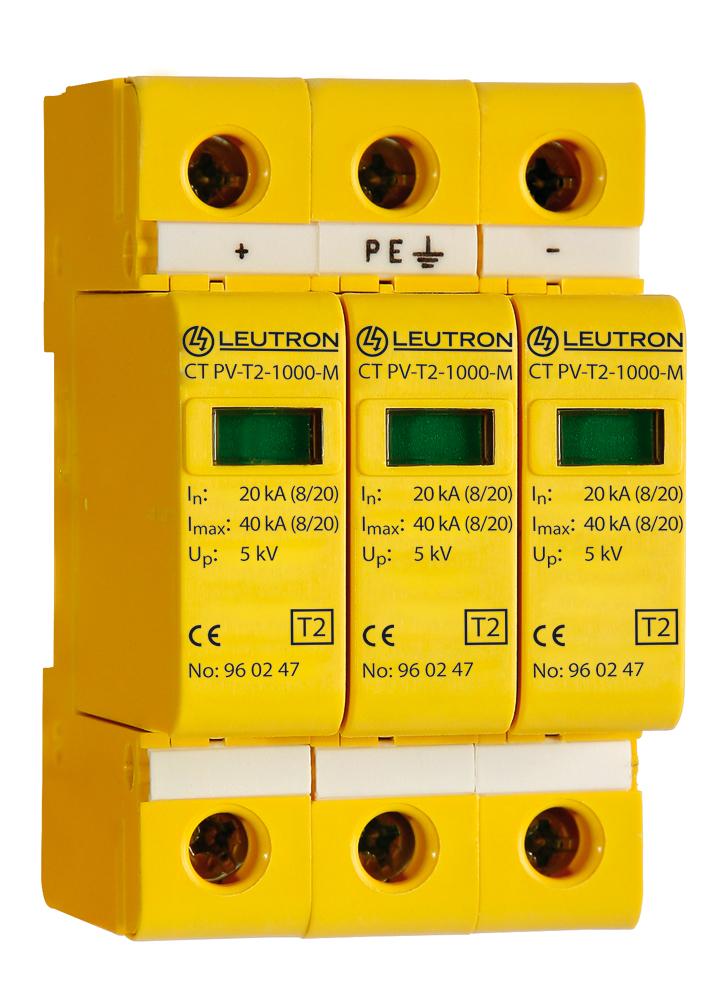

Fully pluggable surge protective arrester for the use in photovoltaic applications. Suitable for insulated and earthed photovoltaic applications with system voltages up to 600 or 1000V DC.

• Remote changeover contact
• SPD type 2 for DC power supplies
• Applicable at the boundaries LPZ 0B - 1 and higher
• Test standard: IEC 61643-11 / EN 61643-11
• Vibration test standard: DIN EN 60068-2-6, IEC 60068-2-6
• Shock test standard: DIN EN 60068-2-27, IEC 60068-2-27
• Mounting on 35 mm DIN rail (EN 60715)
• Degree of protection according to IEC EN 60529: IP 20
• Space required for installation: 54 mm
• Inflammability class according to UL 97 V0
• EAC certification
