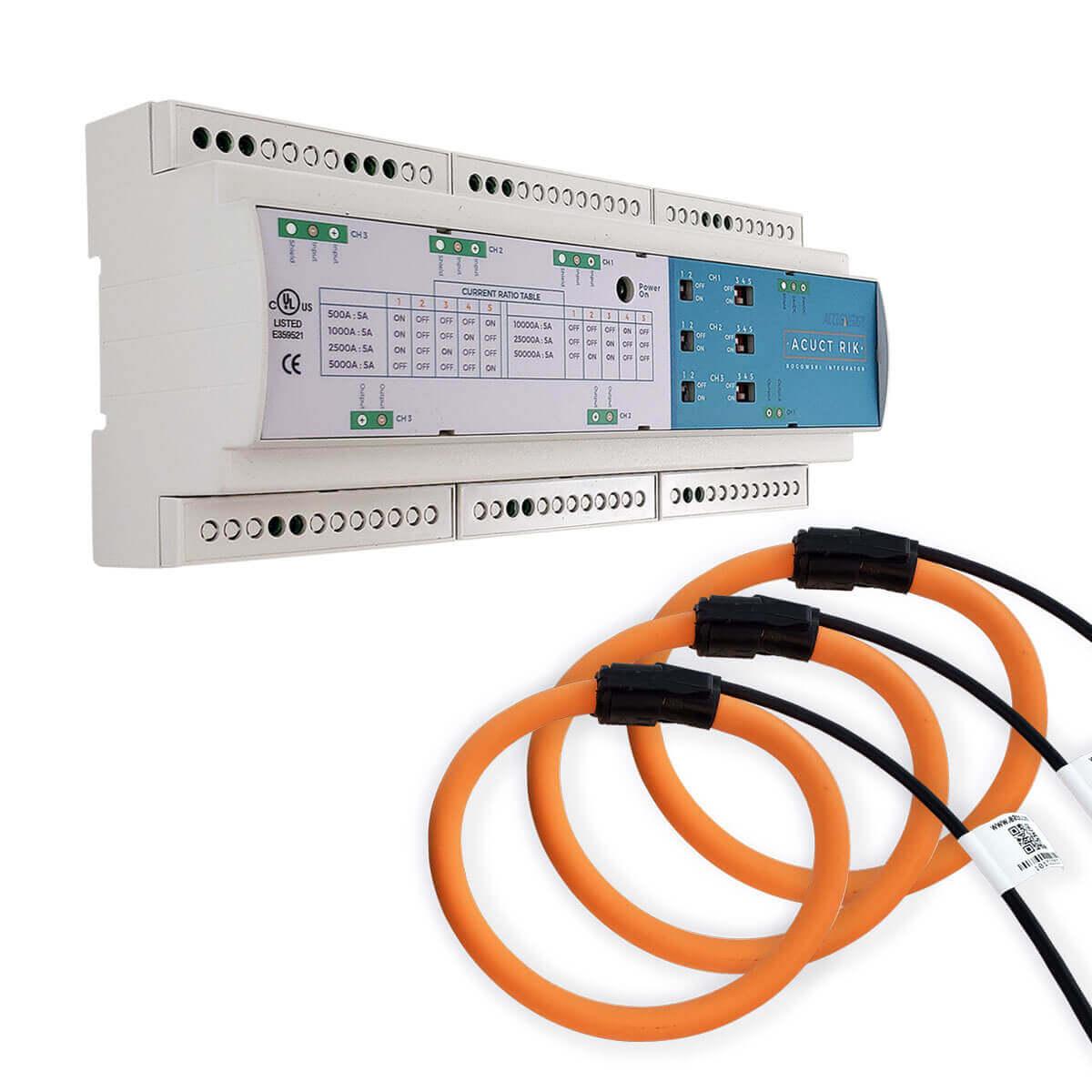

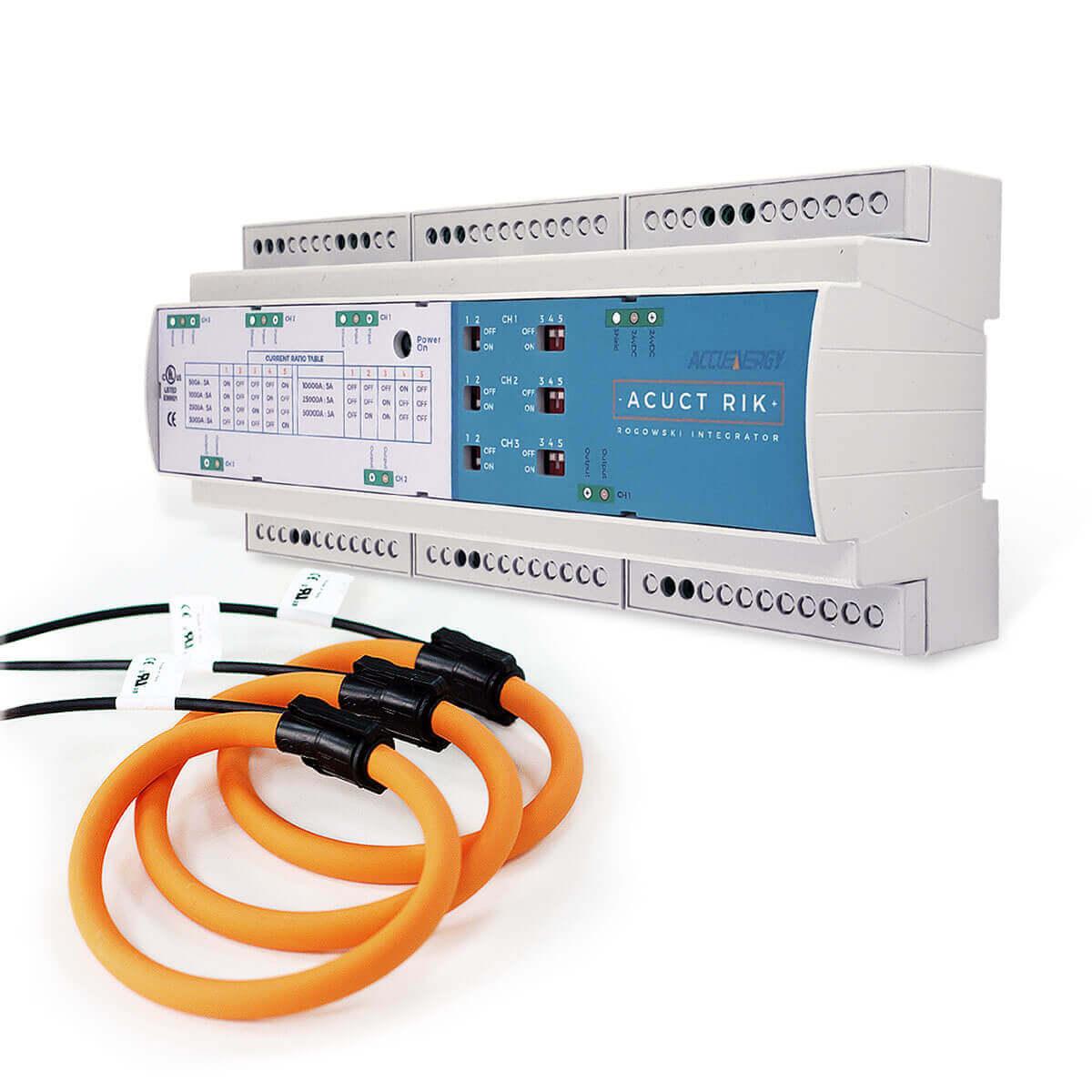

Accuenergy Rogowski Integrator Kit enables flexible current transformers to output 5A signals to a 5A input device such as a power meter. The Rogowski Integrator Kit provides a simple plug-n-play solution that is easy to setup in areas where spatial limitation occurs. Included in the kit are one or three Rogowski coils customized for each order.

The Rogowski Integrator Kit is ideal for projects that face spatial constraints yet still need a 5A output for their device or power meter. Rogowski Coils are high-specification current transformers that are flexible enough to fit into tight spaces where other form factors like a solid core CT or split core CT will not. The RIK can be used in both 50Hz and 60Hz systems with a rated frequency range of 45Hz to 65Hz.

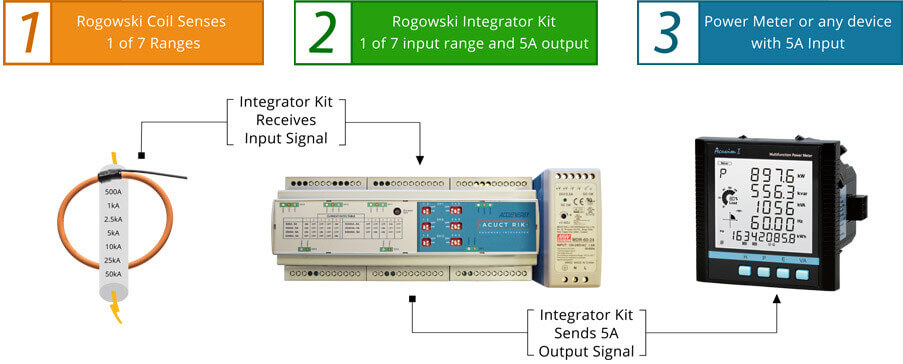

A Rogowski coil will sense the current flow through a conductor and deliver it to the RIK. The Integrator can sense one of seven selected input ranges (500A, 1kA, 2.5kA, 5kA, 10kA, 25kA or 50kA with sensing range of 0.5% to 120% of rated current input) configurable by the user. The RIK has three 5A output channels that sends the signal to the connected equipment with a 5A input such as the Acuvim II series power meter.

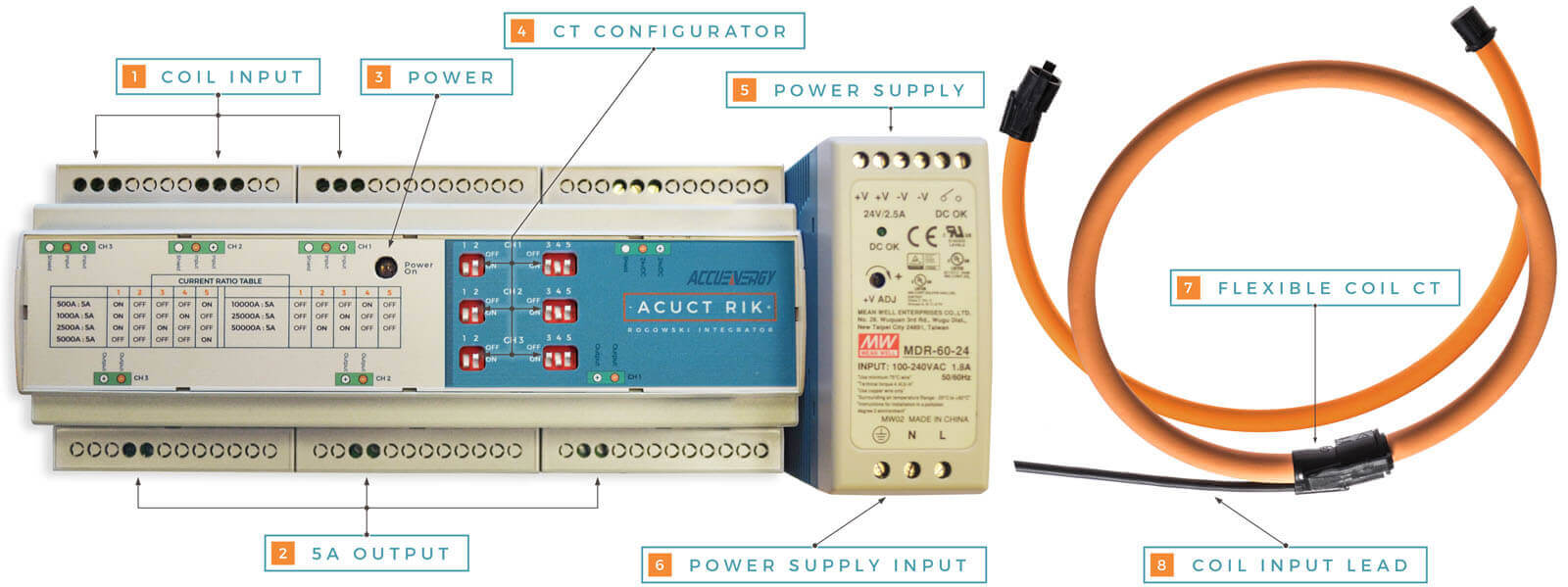

RIK 5A Product Map
