RayDat SCL-2 Series

RayDat SCL-2 Series

  • RayDat SCL-2
  • LEUTRON

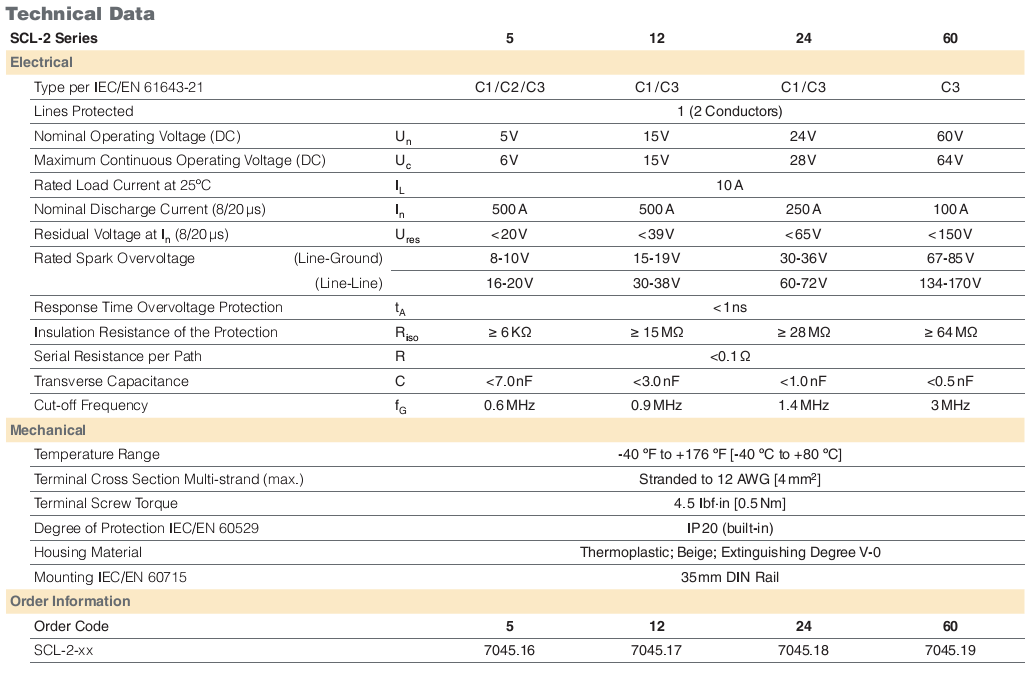

  • IEC/EN Category: C1/C2/C3 (see Technical Data)
  • Mode of Protection: Transverse

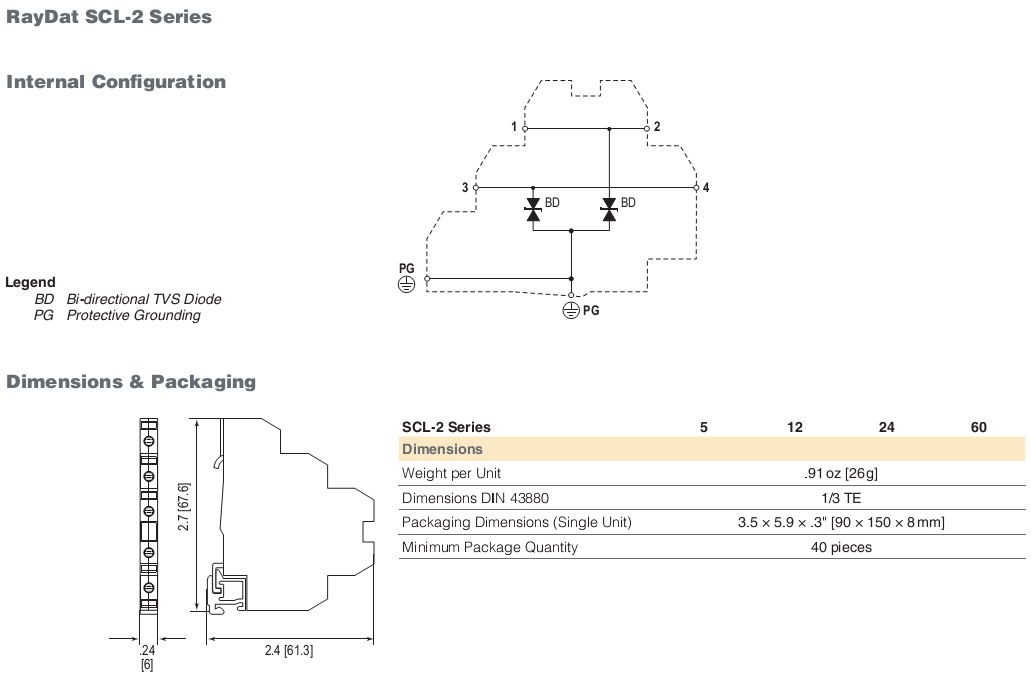

  • Fine Protection: Bi-directional TVS Diode
  • Voltages: 5, 12, 24, 60 V DC
  • Frequency Range: Up to 1.4 MHz
  • Surge Discharge Ratings: In: up to 500 A
  • Series Load Current: 10 A
  • Enclosure: DIN 43880 1/3 TE, DIN Rail Mount
  • Terminals: Stranded to 4 mm2
  • Housing: Compact Design
  • Compliance: IEC/EN 61643-21

The RayDat SCL-2 Series has been developed to protect data transmission circuits or low voltage alarm circuits such as fire or security.

They only provide fine protection using a high speed, bi-directional, silicon stage.

Where necessary, the SCL-2 may be used with a higher energy coarse protection unit such as the SUR-2-110 series.
