RayDat SCL-1 Series

RayDat SCL-1 Series

  • RayDat SCL-1
  • LEUTRON

The RayDat SCL-1 Series has been developed to protect data transmission circuits or low voltage alarm circuits such as fire or security.

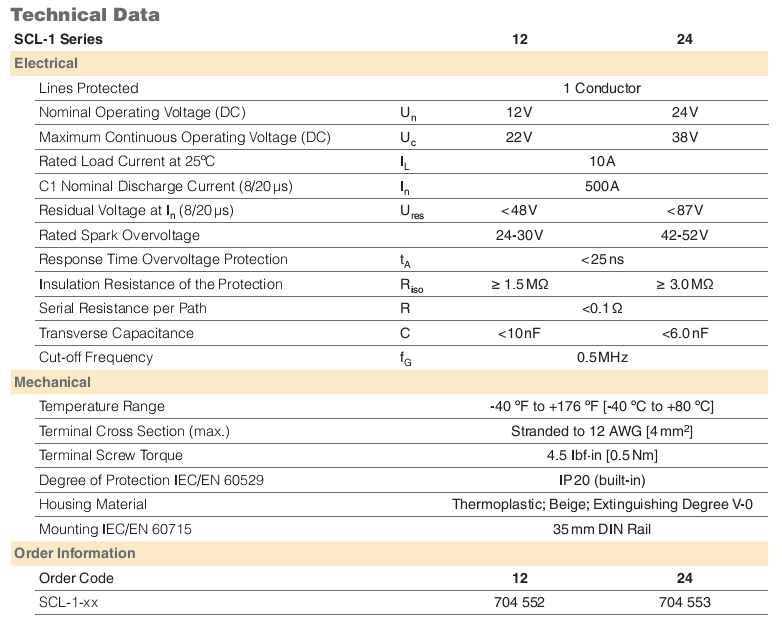

  • IEC/EN Category: C1/C3
  • Mode of Protection: Transverse
  • Fine Protection: MOV
  • Voltages: 12, 24 V DC
  • Frequency Range: 0.5 MHz
  • Surge Discharge Ratings: In: 500 A
  • Series Load Current: 10 A
  • Enclosure: DIN 43880 1/3 TE, DIN Rail Mount
  • Terminals: Stranded to 4 mm2
  • Housing: Compact Design
  • Compliance: IEC/EN 61643-21

The RayDat SCL-1 Series has been developed to protect data transmission circuits or low voltage alarm circuits such as fire or security.

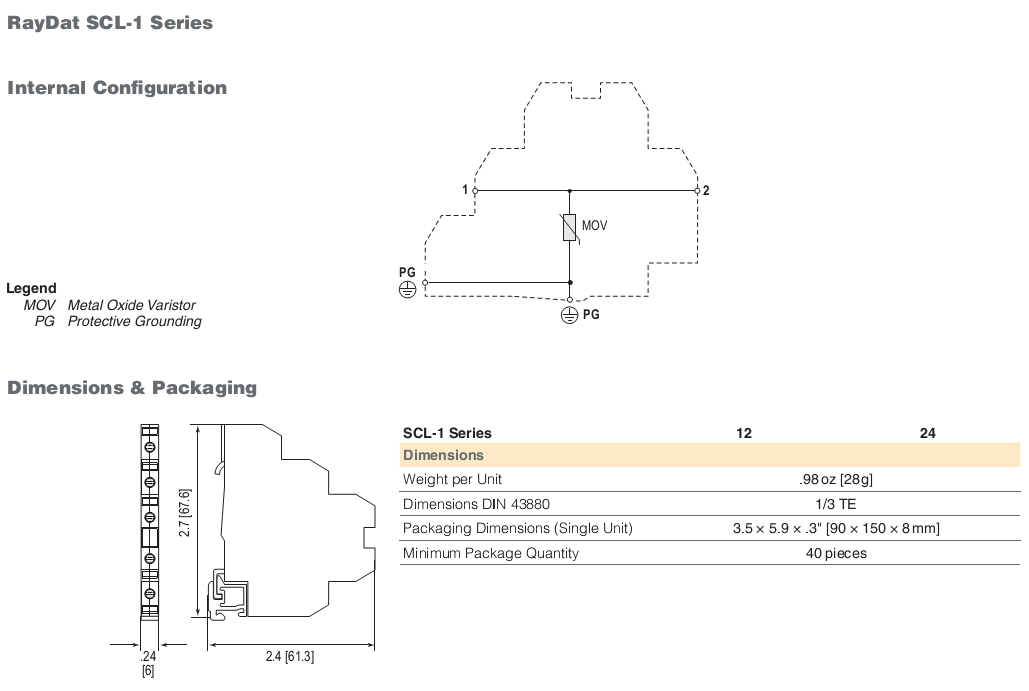

The unit provides fine protection using a MOV.

Where necessary, the SCL-1 may be used with a higher energy coarse protection unit such as the SUR-2 110 Series.
