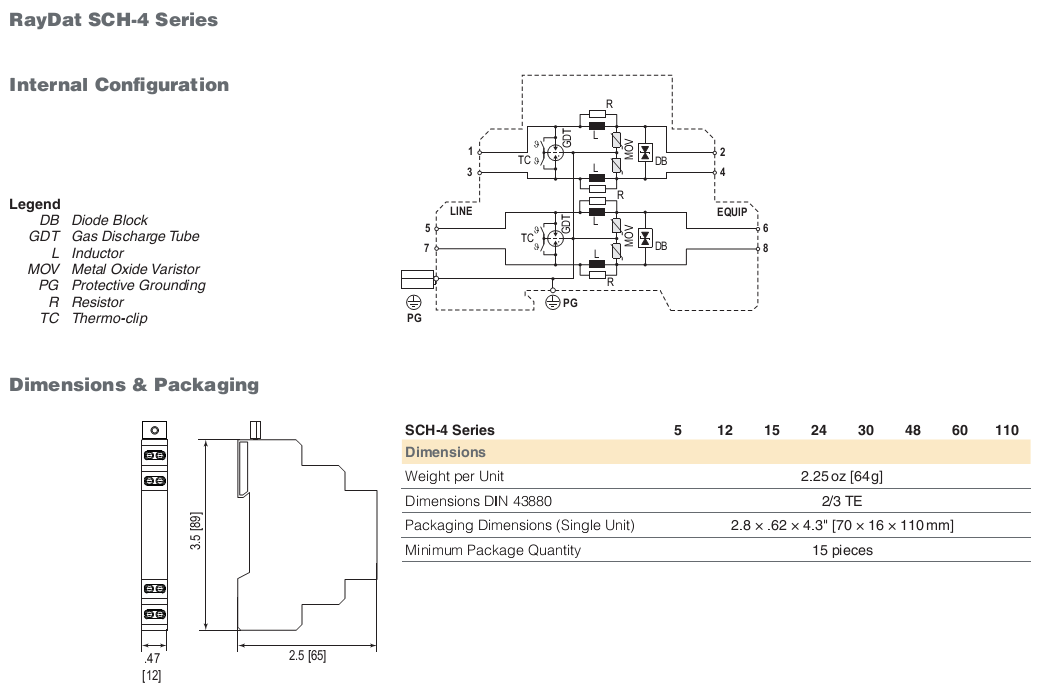

Like the RayDat SCH-2 Series, the SCH-4 provides the same level of protection but in a compact enclosure which can provide protection to two independent circuits pairs. A number of protection voltages are available to ensure the user is able to select the closest clamping voltage to the normal signal operation of the equipment being protected.

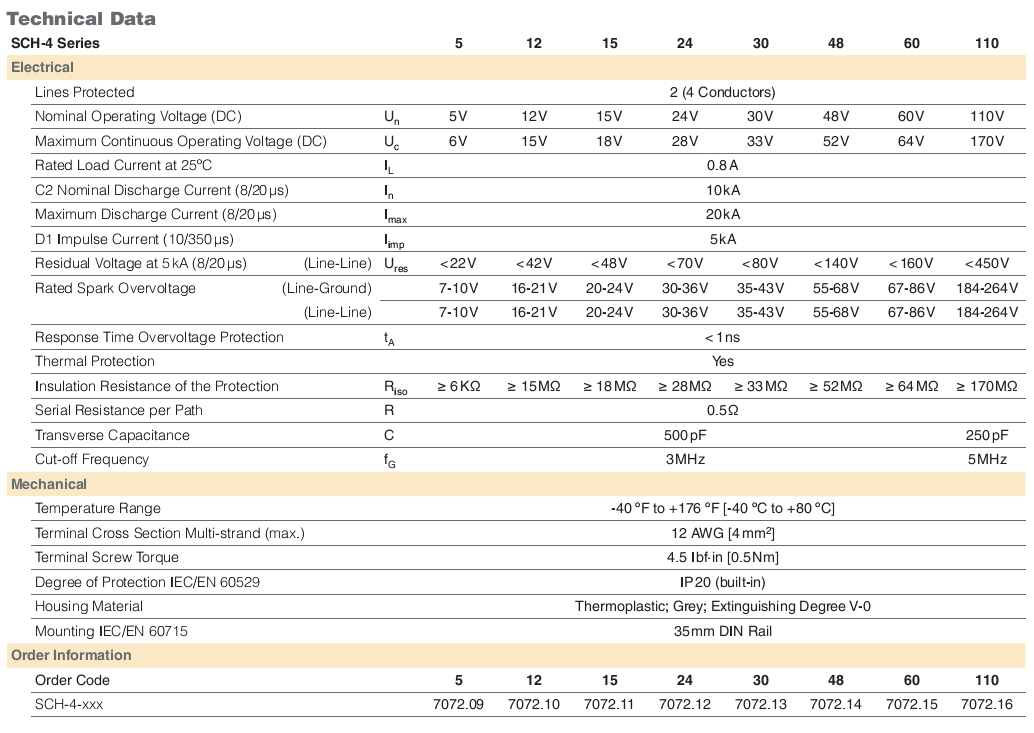

- IEC/EN Category: D1/C1/C2/C3
- Mode of Protection: Longitudinal, Transverse
- Coarse Protection: 3 Terminal GDT
- Voltages:5, 12, 15, 24, 30, 48, 60, 110 V DC
- Frequency Range: Up to 5 MHz
- Surge Discharge Ratings: In: 10 kA, Imax: 20 kA, Iimp: 5 kA
- Series Load Current: 0.8 A
- Enclosure: DIN 43880 2/3 TE, DIN Rail Mount
- Terminals: Stranded to 4 mm2
- Housing: Compact Design
- Compliance: IEC/EN 61643-21
