These efficient overvoltage barriers contain both coarse and fine protection stages and provide longitudinal and a transverse surge protection.

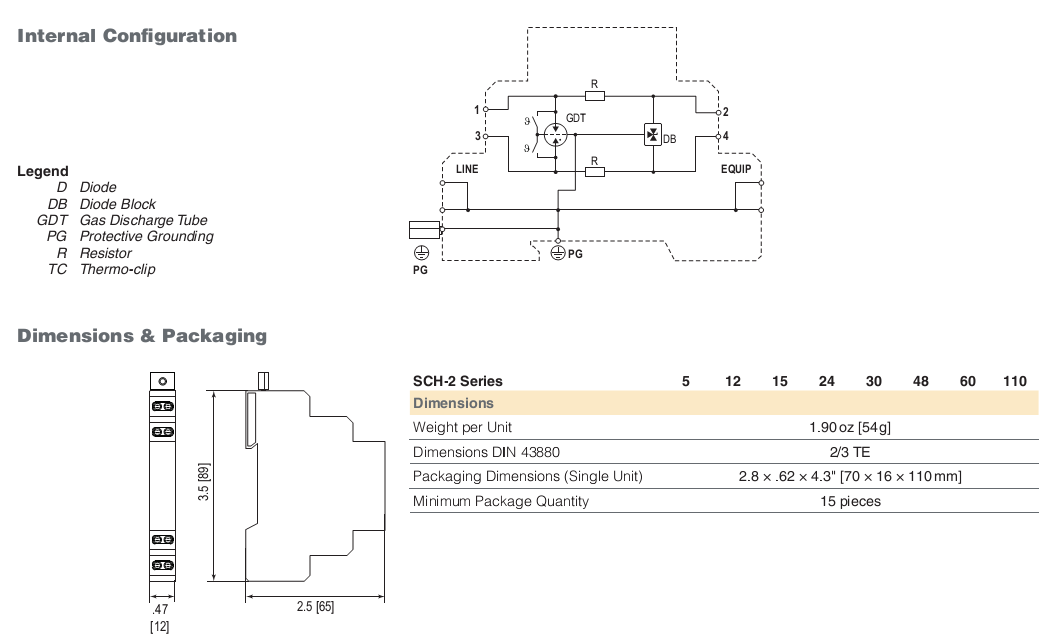

The initial protection stage comprises a three-pole gas discharge tube and is designed to divert the primary surge energy. The subsequent fine protection stage is carried out using multiple metal oxide varistors or with fast bi-directional silicon avalanche diodes. Care is taken in the design of this fine protection stage to avoid capacitive line loading and thereby ensuring a low insertion loss and wide operating frequency range.

Care is taken to ensure energy coordination between the coarse and a fine protection stages at all levels of the incident surge. When power frequency contact occurs between power and communication lines, the hazard of electric shock and fire is increased. To prevent such risk, a thermo-clip is included in the primary protection stage of this device to divert the power frequency current to ground.
