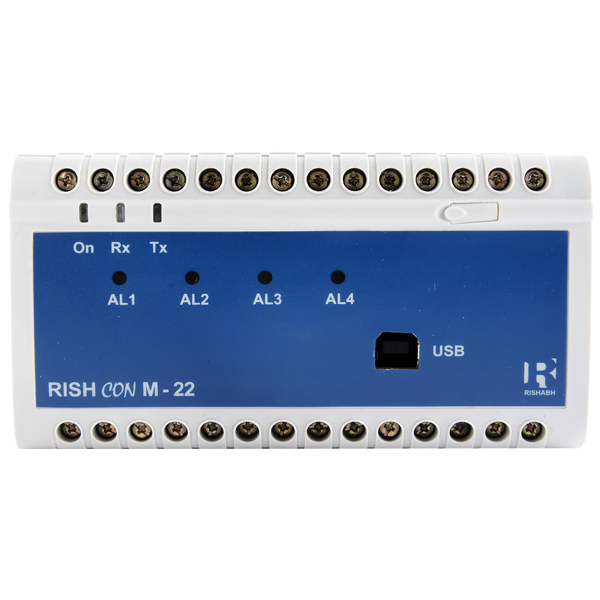

The RISH CON - M transducer is used to measure and convert parameter of Three-phase 3W/4W AC Bal./Unbal. It ensures that the measurement and conversion of measured values into standard analog current signals. Relay / Pulse outputs.

* True RMS measurement

* Fully onsite programmable input PT & CT ratio

* Detection and signaling of incorrect phase sequence

* THD Measurement

* Programmable parameters through the RS-485 interface or USB when using the free eCon configuration software

* Onsite selectable analog output range (0...20mA/4...20mA/-20...+20mA)

* Fast and easy installation on DIN RAIL or onto a wall or in a panel using optional screw hole bracket

* Connection Terminal : Conventional Screw type

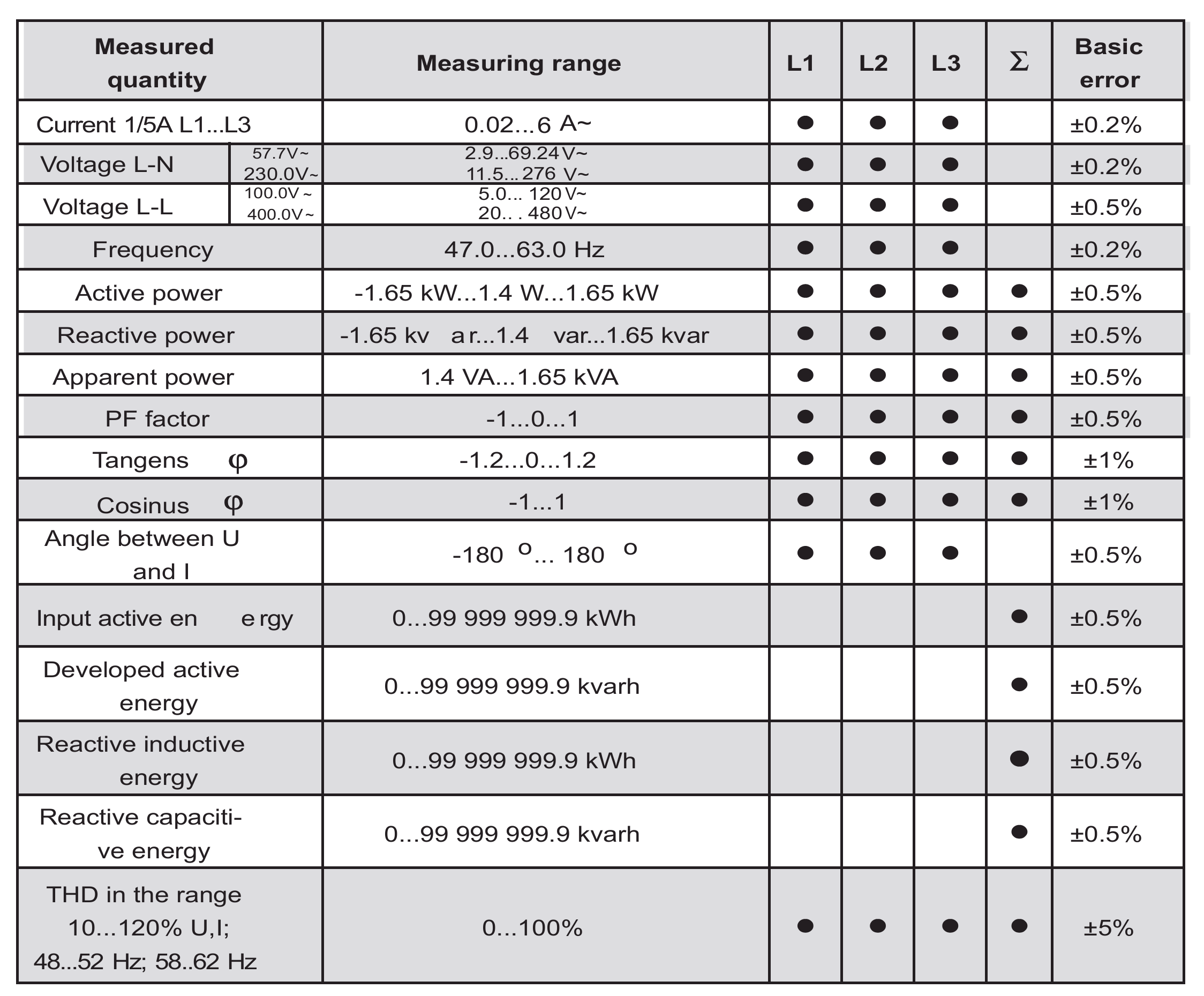

Measuring Input

AC Voltage/Current input signal,sine wave or distorted wave form

Analog Output

Analog output which can be set in between -20mA....20mA onsite. Admissible overflow on analog output: 20% of lower and upper value

Programmable CT/PT Ratio

The Transducer can be programmed onsite using through RS 485 or USB port.

Energy Measurement

Tetraquadrantic energy measurement (Ep+, Ep-, EqL, Eqc)

LED Indication

LED indication for power on,RS485 transmission, reception and alarm switching

USB Communication

USB communication is available. For reading measured parameters & onsite configuration of input/output.

RS 485 Communication

RS485 communication is available. For reading measured parameters & onsite configuration of input/output.

Mean Active Power

Measurement of 15, 30 or 60 minutes’ mean active power (synchronization by an internal clock or a walking window) with the archiving function of 1000 last samples

Pulse constant of OC type output

5000-20000imp./KWh, independently on setting of ratios Ku,Ki

Alarm Indications

The alarm indication can be set for measured input parameter
