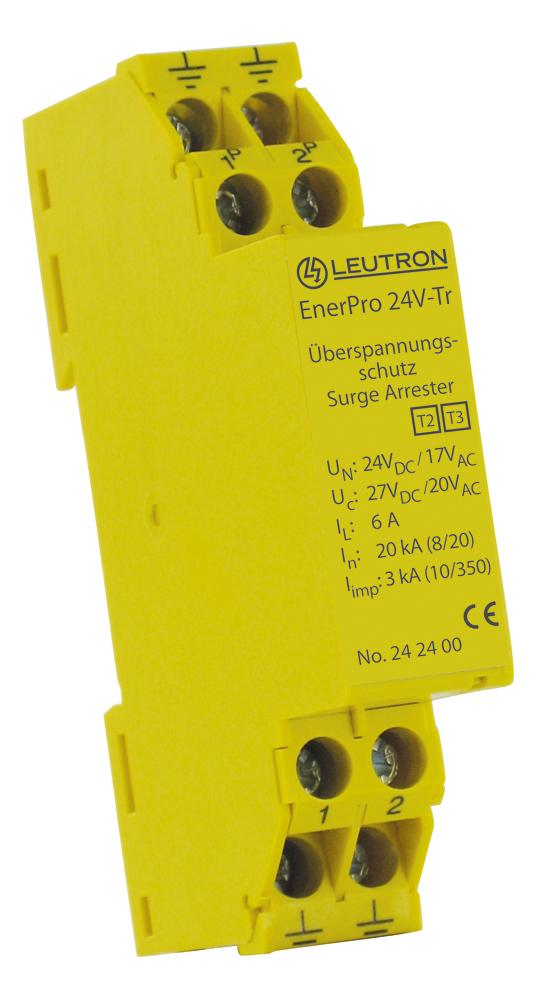

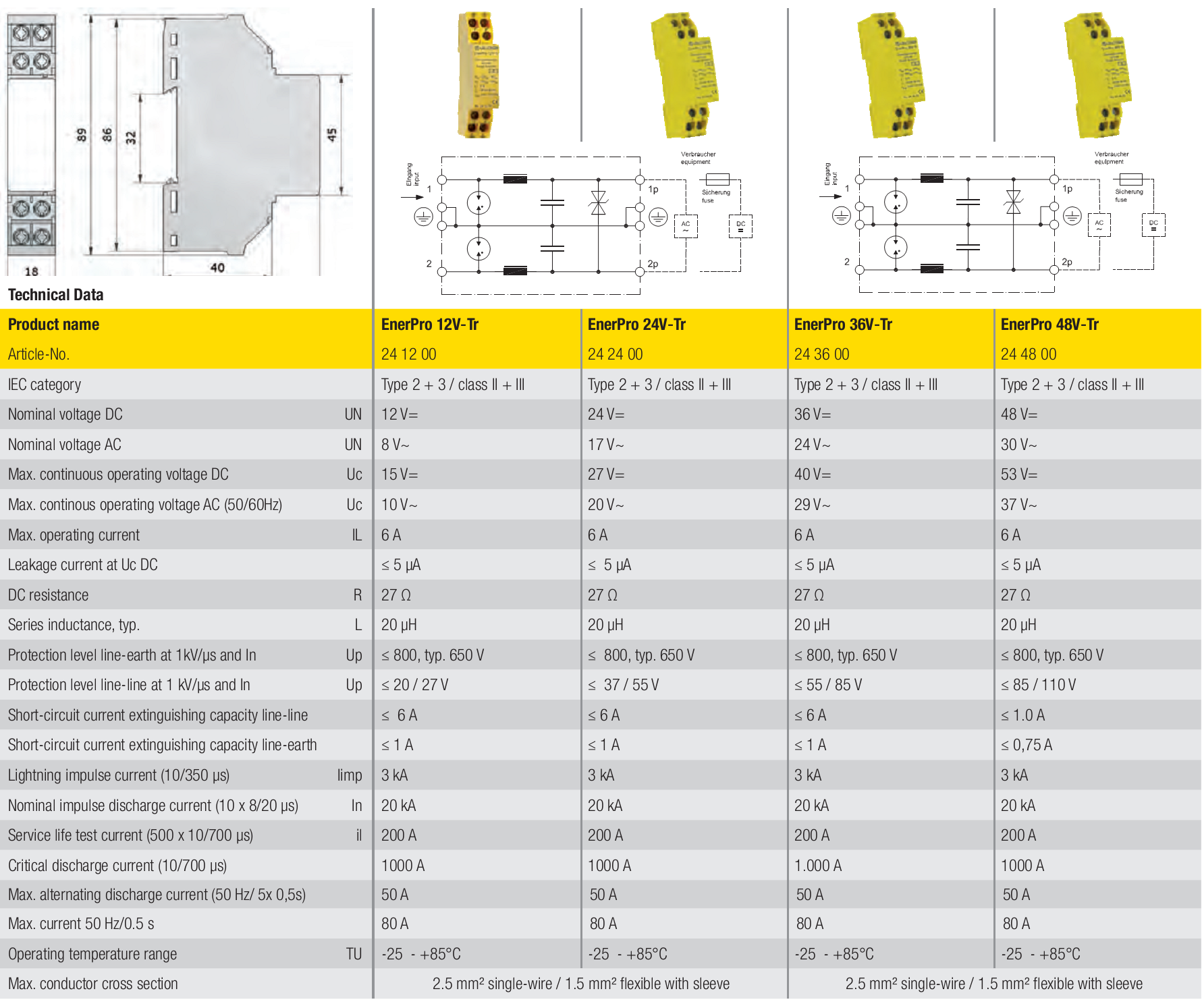

Two-pole  SPD class II + III with gas discharge tubes (GDT) and suppressor diodes for operating currents up to 6 A.

• Two-step protective circuit with integrated low-pass filter
• High performance surge protector for operating voltage of 24 V up to 60 V DC
• Mounting directly on mounting plate or on 35 mm DIN rail
• Degree of protection according to IEC EN 60529: IP 20
• Inflammability class according to UL 94 V0
• EAC certification
• Dimension (DIN 43880): 1 TE

Two-pole SPD for operating current up to 20 A in looped-in wiring, with disconnection device without interruption of the power supply. A very low protection level allows the use as SPD class III.

• Surge voltage protection for electrical and electronical devices
• Arrester status control display: LED green
• Mounting on 35 mm DIN rail (EN 60715)
• Degree of protection according to IEC EN 60529: IP 20
• Inflammability class according to UL 94 V0
• EAC certification
• With low-pass filter
• Dimension (DIN 43880): 3 TE

Surge voltage arrester for electrical and electronical devices in looped-in wiring, with disconnection device without interruption of the power supply.  A very low protection level allows the use as SPD class III.

• Two-pole SPD for operating current up to 6 A
• Arrester status control display: LED green and red
• Mounting on 35 mm DIN rail (EN 60715)
• Degree of protection according to IEC EN 60529: IP 20
• Inflammability class according to UL 94 V0
• EAC certification
• With low-pass filter
• Dimension (DIN 43880): 3 TE
