The Transducer RISH Ducer E13 is used to convert a 3 sine wave AC Voltage or AC Current (depending on types) into a (load independent DC current or load independent DC Voltage) 3 output signal. That can serve several receiving instruments such as indicators, recorders, alarm units etc. Features / Benefits * Up to 3 measuring inputs: AC currents or AC voltages sine wave-form, arithmetical mean value measurement, calibration to rms with sine wave form. * Three measuring outputs: DC current signal (load-independent) or DC voltage signal * Low power consumption / Smaller CT’s & VT’s can be used * Provision for either snapping the transducer onto top - hat rails or securing it with screws to a wall or panel * Manufactured in SMD technology/compact & reliable * Screw terminals suitable for multistrand or thick solid wires. * Electric isolation between input / output and power supply (3.7 kV) / personnel protection assured * Electric isolation between channels is 500V |

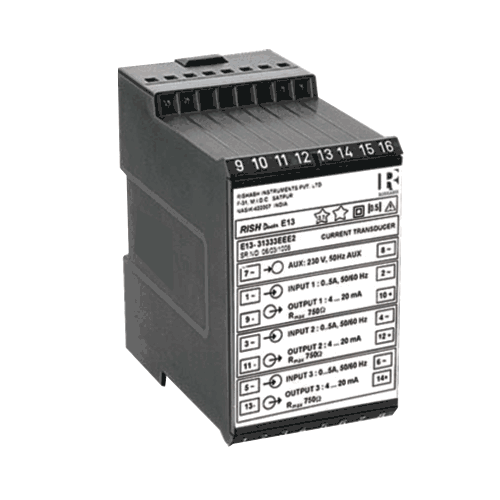

Current/Voltage Transducer - E13 (3 Channel)
- E13
- Rishabh
Rishducer E13 convert a 3 sine waves AC voltage (upto 750V) or Current (upto 10A) of sine waveform into proportional 3 analog output load dependent Vdc or independent Idc based on arithmetical mean value measuring, calibration to RMS with sine waveform, AC or DC Aux supply
