AXM-WEB2 Ethernet Module

AXM-WEB2 Ethernet Module
AXM-WEB2 Ethernet Module
AXM-WEB2 Ethernet Module
AXM-WEB2 Ethernet Module

AXM-WEB2 Ethernet Module

  • AXM WEB2
  • ACCUENERGY
  • Dual ethernet RJ45 port with individual network configuration
  • Dual Ethernet ports and WiFi works simultaneously with different networks and data acquisition systems
  • COMtrade format for waveform capture
  • 8GB onboard memory with 1-second interval datalogging capabilities
  • Industry leading 100ms and 40ms response rate via ModbusTCP/IP protocol
  • Secure HTTPs data encryption to cloud server
  • SSL encrypted webserver plus TLS 1.2 compliance for industryleading cybersecurity standard
  • Metering data backup log to avoid data loss during network downtime
  • Support industrial, utility and substation protocols IEC 61850, DNP 3.0 V2, Modbus-TCP/IP, SNMP, HTTP/HTTPs Post, FTP & SNTP
  • Built-in sFTP server for data-log storage and retrival.
  • Graphical display of historical data trends on all parameters for analysis
  • WiFi supports Access Point mode and Station mode for both direct connection/configuration and public WiFi network connection

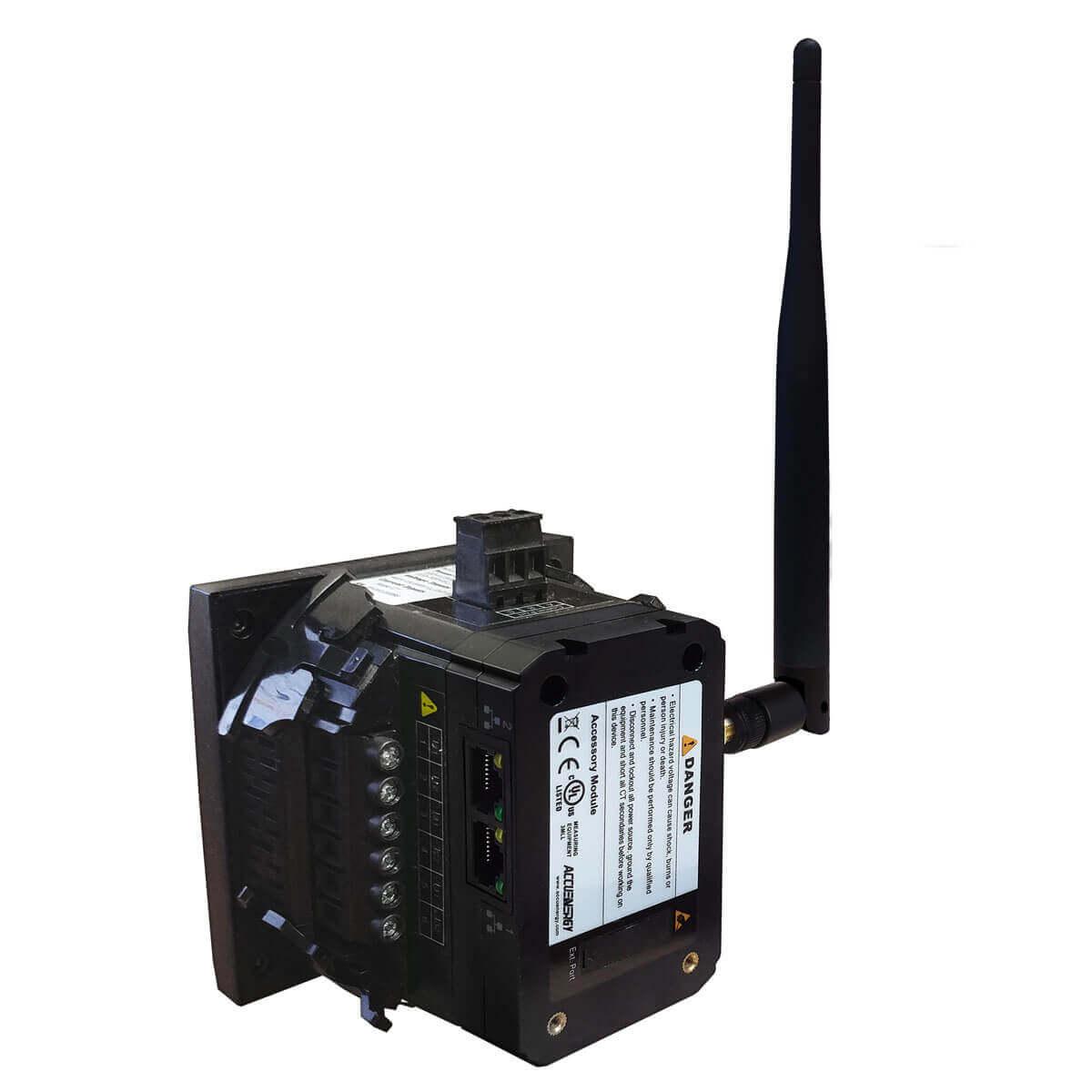

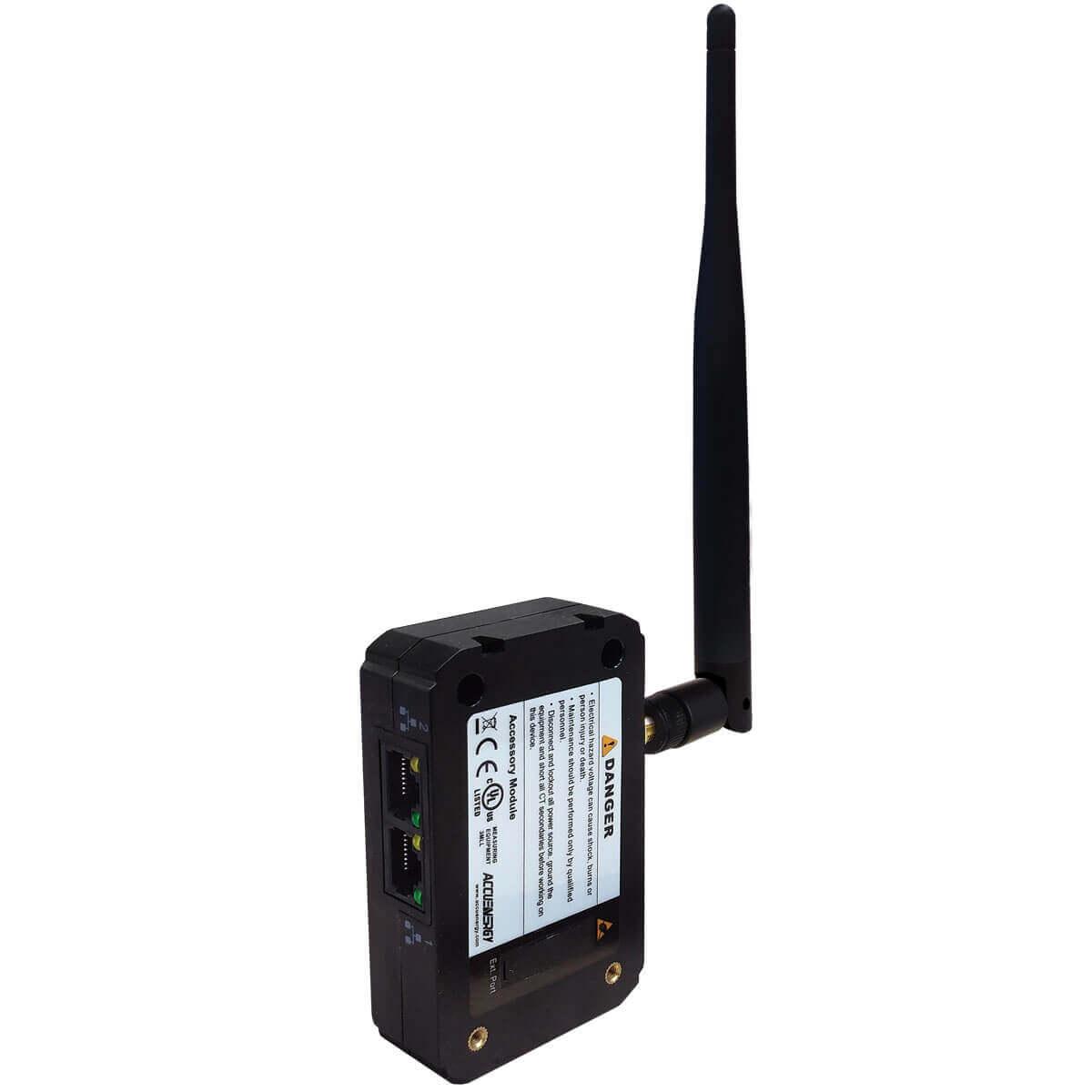

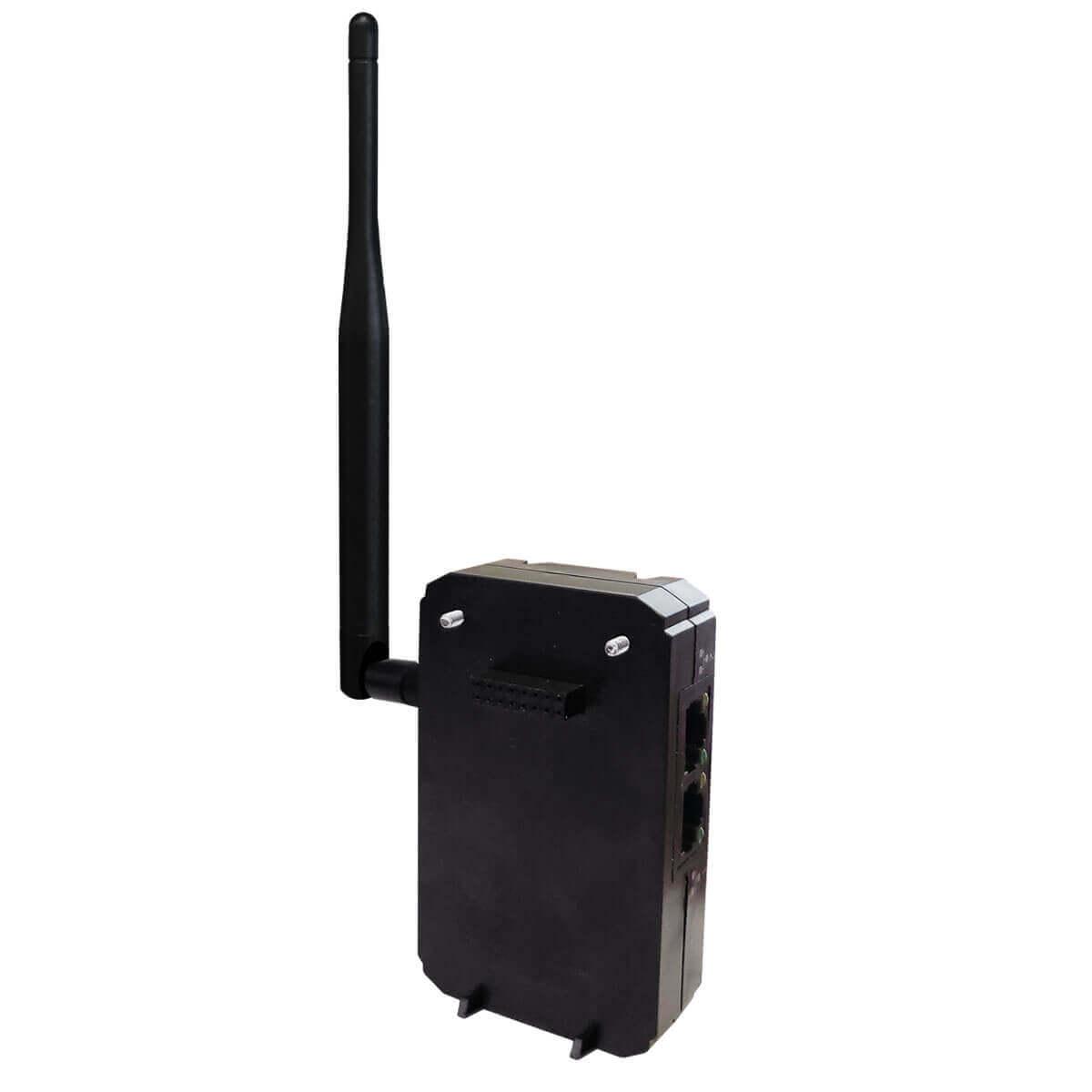

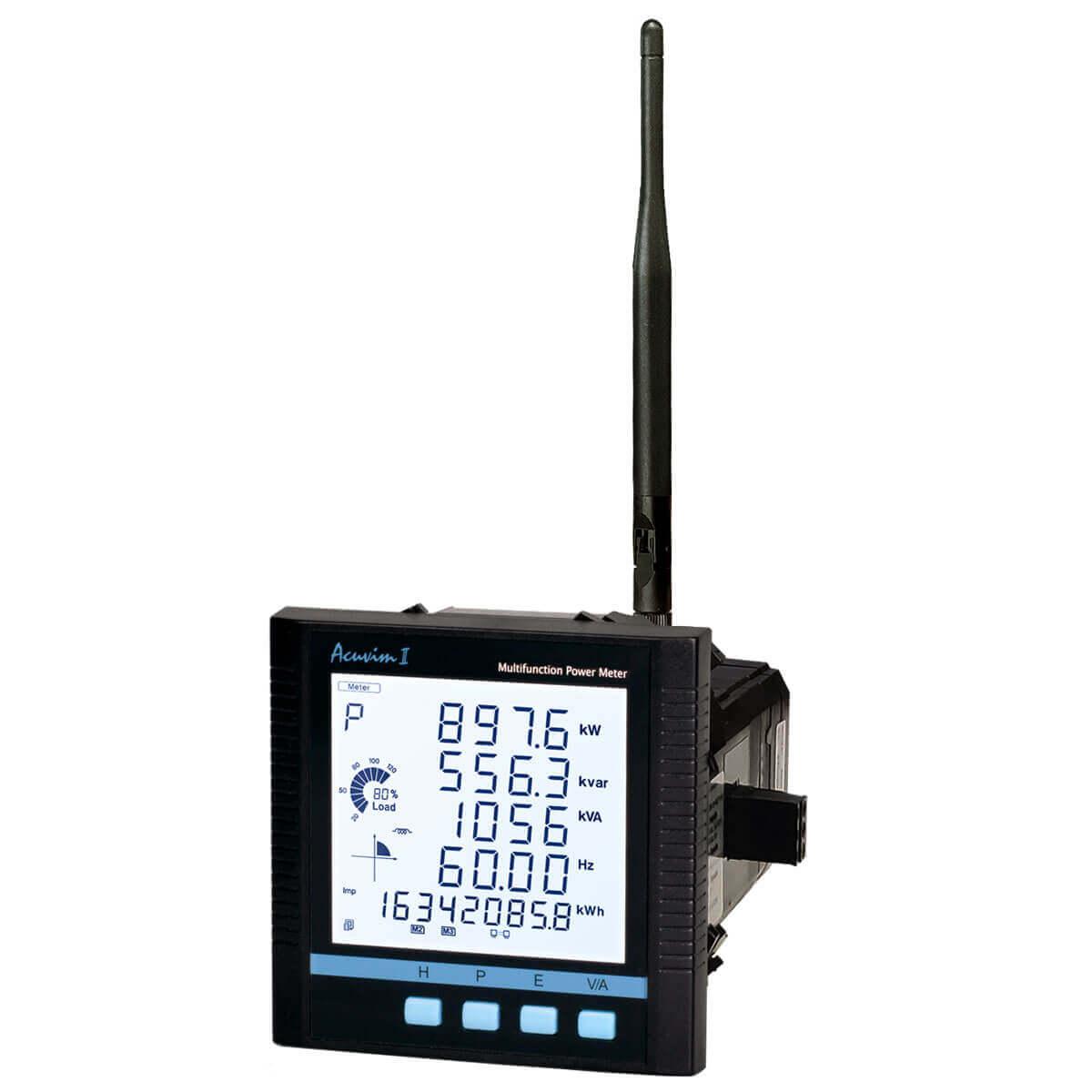

AXM-WEB2 provides Dual ethernet ports and WiFi communication channel for Acuvim II Series power meter. Wide
range of communication protocols are supported such as Modbus-TCP/IP, HTTP/HTTPs Post, FTP, sFTP, BACnet-IP,
DNP3 V2, SNMP V3, IEC61850 2nd edition, SMTP and NTP time synchronization.

Class-Leading Security

Fully encrypt and authenticate data communication between energy meters and data server. AXM-WEB2 supports leading HTTP web security standard TLS v1.2 and SSL HTTPS encryption. WiFi communication is authenticated through WPA or WPA2 enterprise security protocol.

Reliable Backup Data Logs

Prevent data outages from network downtime or any other possible communication issues. AXM-WEB2 pushes data via HTTP post, HTTPS post, or FTP to your server or energy management system (EMS). Data are logged locally on the module until all data are successfully posted to the server to ensure data integrity.

Fast Modbus-TCP/IP Response Time: 40ms

AXM-WEB2 module provides a fast communication protocol within 40ms that enables Acuvim II series power meters to make real-time updates to key parameters such as line and phase voltage, current and power readings via industry de-facto Modbus-TCP/IP.
