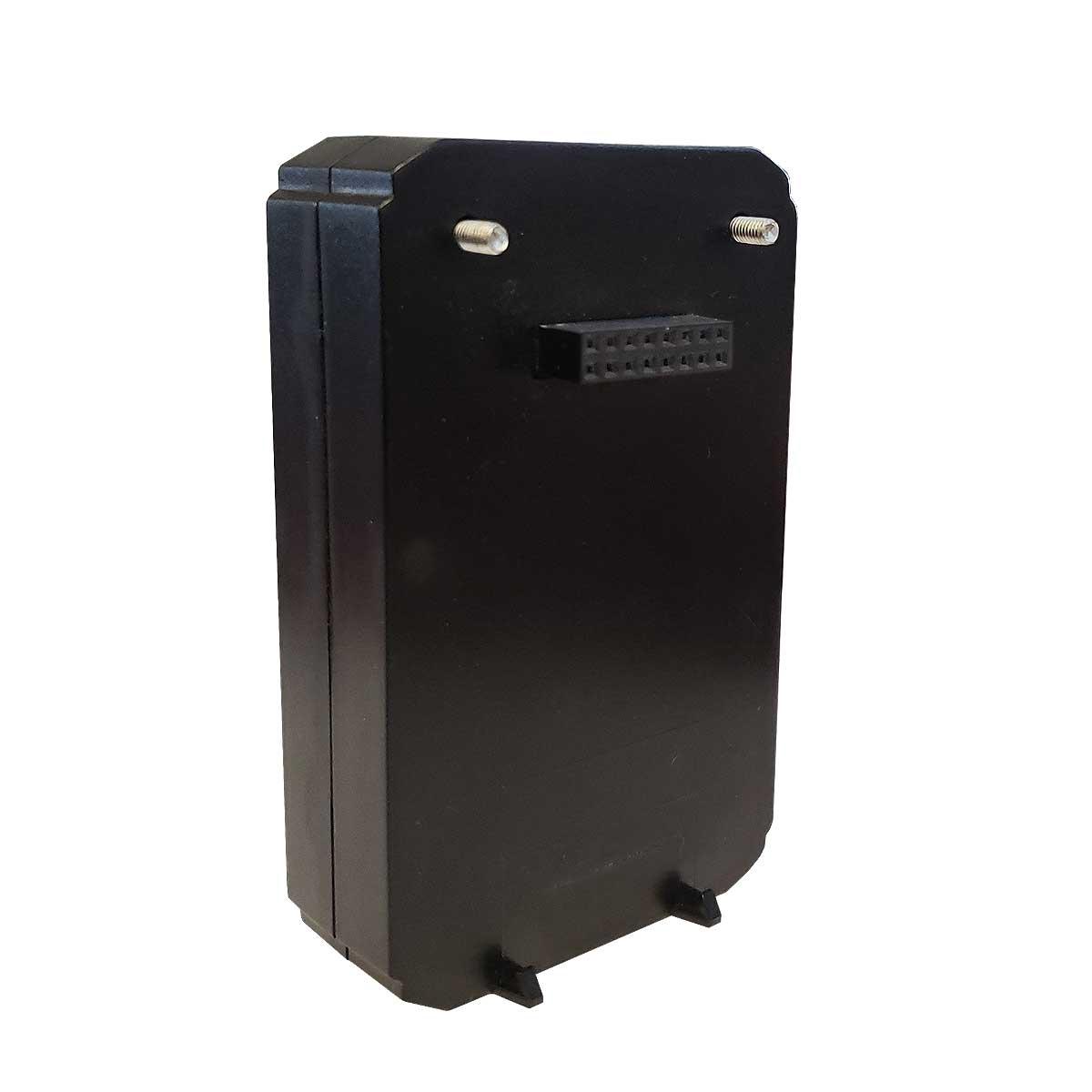

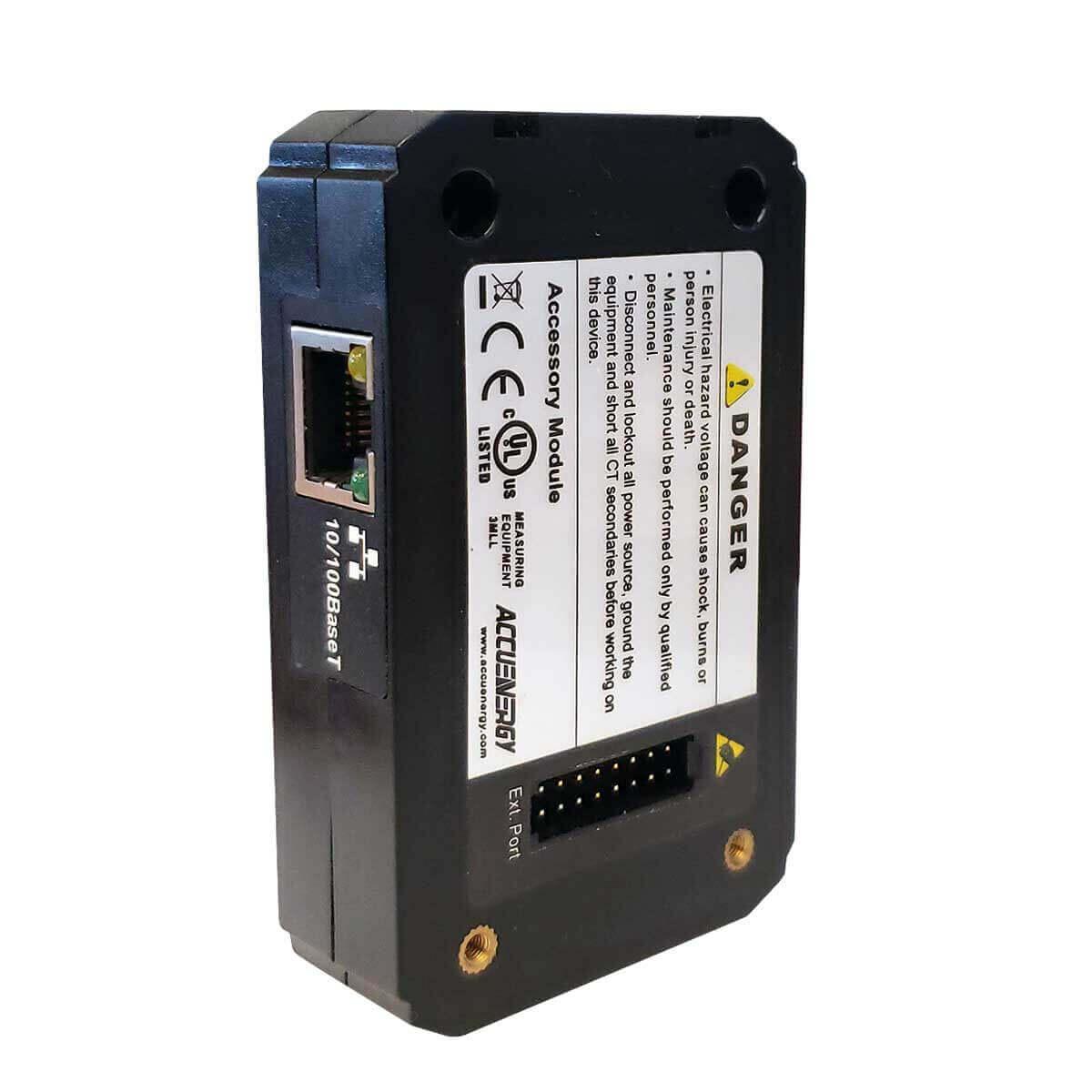

AXM-WEB Ethernet Module (for Acuvim II)

AXM-WEB Ethernet Module (for Acuvim II)
AXM-WEB Ethernet Module (for Acuvim II)
AXM-WEB Ethernet Module (for Acuvim II)

AXM-WEB Ethernet Module (for Acuvim II)

  • AXM-WEB-PUSH
  • ACCUENERGY
  • 4GB onboard memory with 15-second interval datalogging capabilities
  • Industry leading 100ms response rate via Modbus-TCP/IP protocol
  • Secure HTTPs data encryption to cloud server
  • SSL encrypted webserver plus TLS 1.2 compliance for industry-leading cybersecurity standard
  • Metering data backup log to avoid data loss during network downtime
  • Support industrial standard protocols, Modbus-TCP/IP, SNMP, HTTP/HTTPs Post, FTP & SNTP
  • Built-in sFTP server for data-log storage and retrieval.
  • Graphical display of historical data trends on all parameters for analysis

AXM-WEB provides an Ethernet connection to the Acuvim II Series power meter via Modbus-TCP/IP, HTTP Post, HTTPS Post, FTP, SMTP for e-mail and SNTP time synchronization.

Class-Leading Security

Fully encrypted communication between customer and meter to ensure all energy consumption data are secured to user credentials. HTTPS encryption is the accepted protection standard for all web interface and main data transmission protocol HTTPS post.

Reliable Backup Data Logs

Prevent data outages from network downtime or any other possible communication issues. AXM-WEB pushes data via HTTP post, HTTPS post, or FTP to your server or energy management system (EMS) server provider. Data are logged locally on the module until all data are successfully posted to the server to ensure data integrity.

Fast Modbus-TCP/IP Response Time: 100ms

AXM-WEB module provides a fast communication protocol within 100ms that enables Acuvim II series multifunction power meter to make real-time updates to key parameters such as line and phase voltage, current and power readings via industry de-facto Modbus-TCP/IP.
