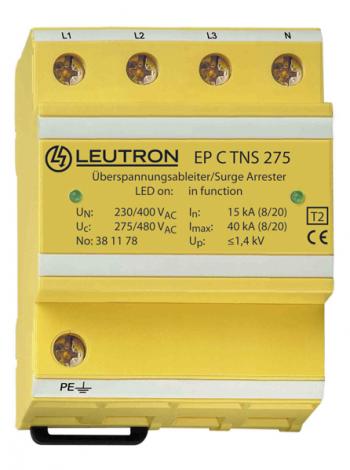

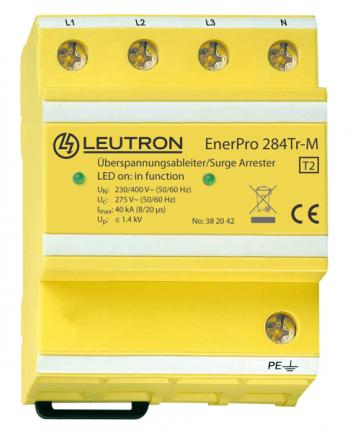

SPD Type 2 - EnerPro Series

Multipole compact surge protective devices for the use in e. g. 3 phase TNS, TT, TNC systems and 2 phase TT1+1, TN and IT systems.

• Monitoring of conductor and arrester via LED
• Inflammability class according to UL 94 V0
• EAC certification
• Test standard: IEC 61643-11 / EN 61643-11
• Remote signalling contact (FM): break contact
• Switching capacity FM: 250 V/2 A
• conductor cross section FM: 1,5 mm²
• Leakage current-free

Slim and leakage-current free 2-pole surge arrester, e.g. for a 1-phase TN system. Only 1 MW according to DIN 43880.

• SPD based on NPE isolating spark gap technology for TT sytems
• leakage current-free
• Monitoring of conductor and arrester via LED
• Remote signalling contact (Pk): break contact
• Degree of protection nach IEC EN 60529: IP 20
• Mounting on 35 mm DIN rail (EN 60715)
• EAC certification

• Function control indication via LED
• Degree of protection nach IEC EN 60529: IP 20
• Mounting on 35 mm DIN rail (EN 60715)
• EAC certification
• Remote signalling contact (Pk): break contact
• Switching capacity Pk: 250 V/2 A
• conductor cross section Pk: 1,5 mm²
