SPD Type 1+2+3 - PowerPro

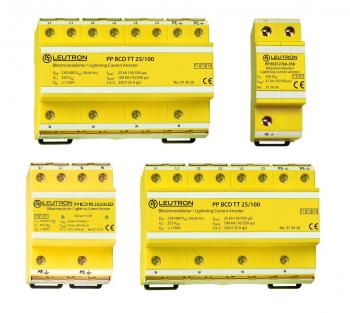

Multipole compact combined arresterfor the use in 1, 2 and 3 phase TNS, TT, TN, TNC and IT systems. The installation place of the PowerPro BCD is the main distribution board upstream or downstream of the power meter. Accor-ding to the lightning protection zones concept in IEC DIN EN 62305 part 1-4 (VDE 0185-305-1-4), it can universally be installed at the transition 0A to 2.

• Test standard: IEC 61643-11 / EN 61643-11
• No leakage currents, thus, allowing installation upstream of power meters
• Rare-gas-filled spark gap, hermetically sealed
• Discharge capacity up to 100 kA (10/350 µs)
• All-in-one protection unit, ready for connection
• Operates independently of atmospheric air pressure and ambient humidity
• Inflammability class according to UL 94 V0
• EAC certification
• Remote signalling contact (FM): break contact
• Switching capacity FM: 250 V/2 A
• conductor cross section FM: 1,5 mm²

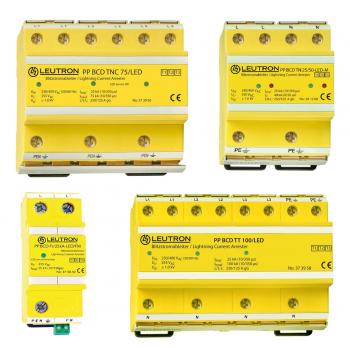

Combined modular and compact multi-pole arrester for 1-, 2- and 3-phase TT, TNC and TN systems. The installation place of the PowerPro BCD is the main distribution board upstream of the power meter. According to the lightning protection zones concept in IEC DIN EN 62305 part 1-4 (VDE 0185-305-1-4), it can universally be installed at the transition 0A to 2.

• Test standard: IEC 61643-11 / EN 61643-11
• Monitoring of conductor and arrester via LED
• Not leackage current free
• Discharge capacity up to 100 kA (10/350 µs)
• All-in-one protection unit, ready for connection
• Rare-gas-filled spark gap, hermetically sealed
• Serial wiring with multi-functional terminals
• Operates independently of atmospheric air pressure and ambient humidity
• Inflammability class according to UL 94 V0
• EAC certification
• Remote signalling contact (FM): break contact
• Switching capacity FM: 250 V/2 A
• conductor cross section FM: 1,5 mm²
