SPD Type 1+2 - IsoPro Series

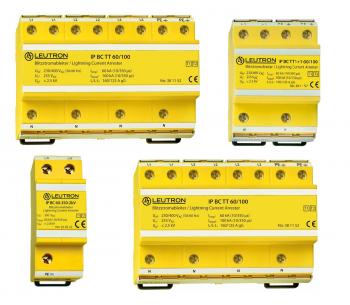

Multipole lightning current arrester type 1 + 2 for the use in 1 , 2 and 3 pha-se TNS, TT, TNC, TN and IT systems, for protection of low-voltage consumers’ installations in business and residential areas against surges caused by lightning or switching actions in the network. The arresters can be installed at the transition 0A to 2 accord-ing to the lightning protection zones concept.

• Test standard: IEC 61643-11 / EN 61643-11
• All-in-one protection unit, ready for connection
• No leakage currents, thus, allowing installation upstream of power meters
• Degree of protection according to IEC EN 60529: IP 20
• Mounting on 35 mm DIN rail (EN 60715)
• Inflammability class according to UL 94 V0
• EAC certification
• Remote signalling contact: break contact
• Switching capacity FM: 250 V/2 A
• conductor cross section FM: 1,5 mm²

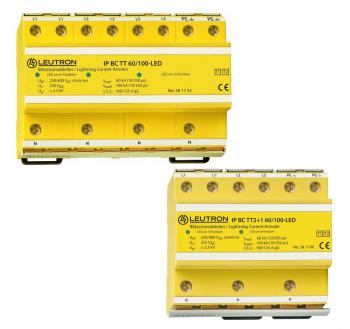

Combined multi-pole arrester for 2 and 3 phase TT systems.

• Test standard: IEC 61643-11 / EN 61643-11
• Arrester status control display: LED green (readiness: on)
• Not leackage current free
• 4 pole; 3+1 NPE
• All-in-one protection unit, ready for connection
• Mounting on 35 mm DIN rail (EN 60715)
• Inflammability class according to UL 94 V0
• EAC certification
• Remote signalling contact (FM): break contact
• Switching capacity FM: 250 V/2 A
• conductor cross section FM: 1,5 mm²

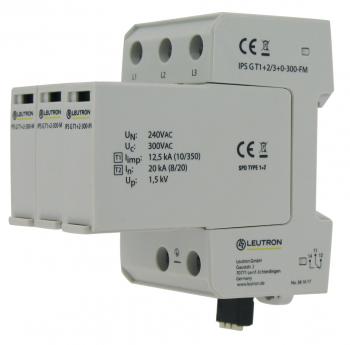

Combined multi-pole and plugable arrester e. g. for 3 phase TNS, TT and TNC systems. Mechanical status indicator: State of the surge protective device is optically indicated.

• Test standard: IEC 61643-11 / EN 61643-11
• Place of installation: Main distributer
• With high performanced metalloxid varistor
• High lightning impulse discharge current of 12.5 kA (10/350 µs) per pole
• Mounting on 35 mm DIN rail (EN 60715)
• Inflammability class according to UL 94 V0
• With remote signalling contact (FM): changeover contact
• Switching capacity FM: AC: 250V, 125V:1A / DC: 48V, 24V, 12V: 0,5A
• conductor cross section FM: 1,5 mm²
